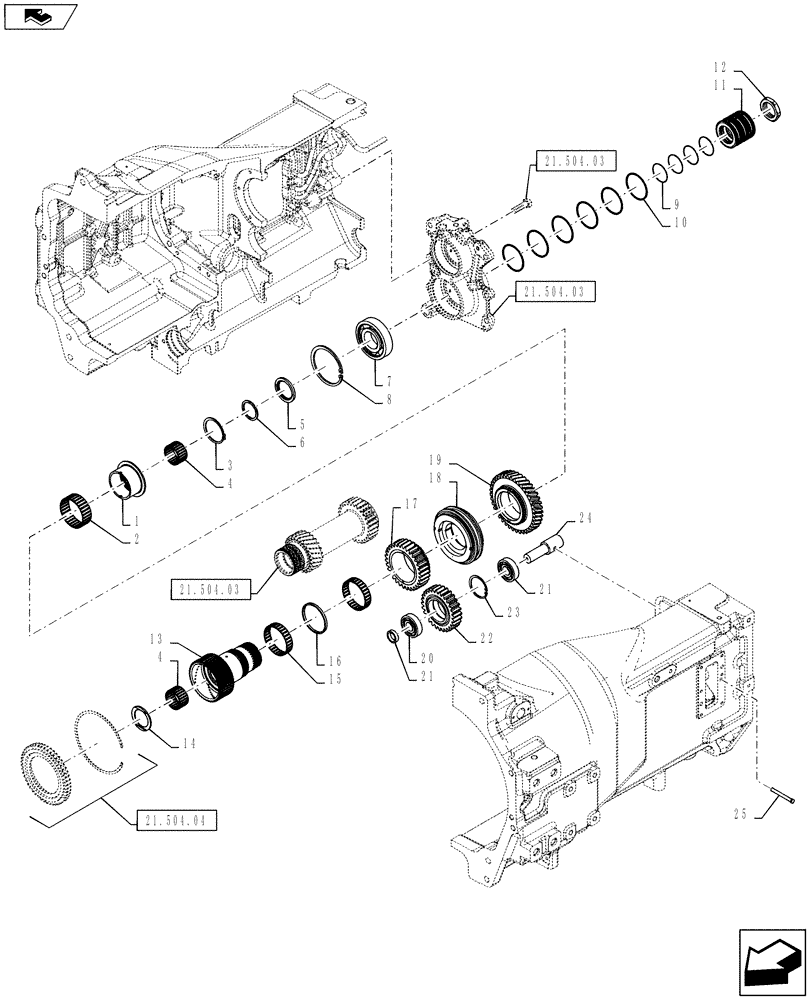

Запчасти Case IH PUMA 145 (21.504.05) - TRANSMISSION - REVERSE AND II RANGE GEARS ON SECONDARY SHAFT (21) - TRANSMISSION

1

87362995

HUB

1шт.

2

87588901

NEEDLE BEARING,80mm ID x 86mm OD x 30mm W

1шт.

3

11070276

SNAP RING,M68, Ext

1шт.

4

87588887

NEEDLE BEARING,50mm ID x 55mm OD x 30mm W

2шт.

5

87363234

SNAP RING,6.2mm Thk

1шт.

6

87363217

SHAFT LOCK

1шт.

7

20229990

BALL BEARING,50mm ID x 110mm OD x 27mm W

1шт.

8

11075476

SNAP RING,M110, Int

1шт.

9

14455080

O-RING,50.52mm ID x 1.78mm

4шт.

10

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

6шт.

11

84356313

MANIFOLD

1шт.

12

87574919

NUT,Hex, M45 x 1.5, 13 Thd

1шт.

13

84365357

GEAR SHAFT

1шт.

14

84335080

SPACER,50mm ID x 69mm OD x 5mm L

1шт.

15

87588904

NEEDLE BEARING,80mm ID x 86mm OD x 20mm W

2шт.

16

87363226

SPACER,80mm ID x 86mm OD x 6mm L

1шт.

17

87362982

GEAR,31T, 40T

Reverse

1шт.

18

84221359

SYNCHRONIZER,50T, 78mm OD, 40T, 105mm OD

1шт.

19

84338799

GEAR,39T, 40T

II Range

1шт.

20

87363218

SPACER,25mm ID x 34mm OD x 8.5mm L

1шт.

21

20996680

BALL BEARING,25mm ID x 62mm OD x 17mm W

2шт.

22

87362983

GEAR,28T

1шт.

23

11061076

SNAP RING,M62, Int

1шт.

24

87363209

PIN,25mm OD x 67mm L

1шт.

25

84302073

PIN,8mm OD x 77mm L

1шт.
