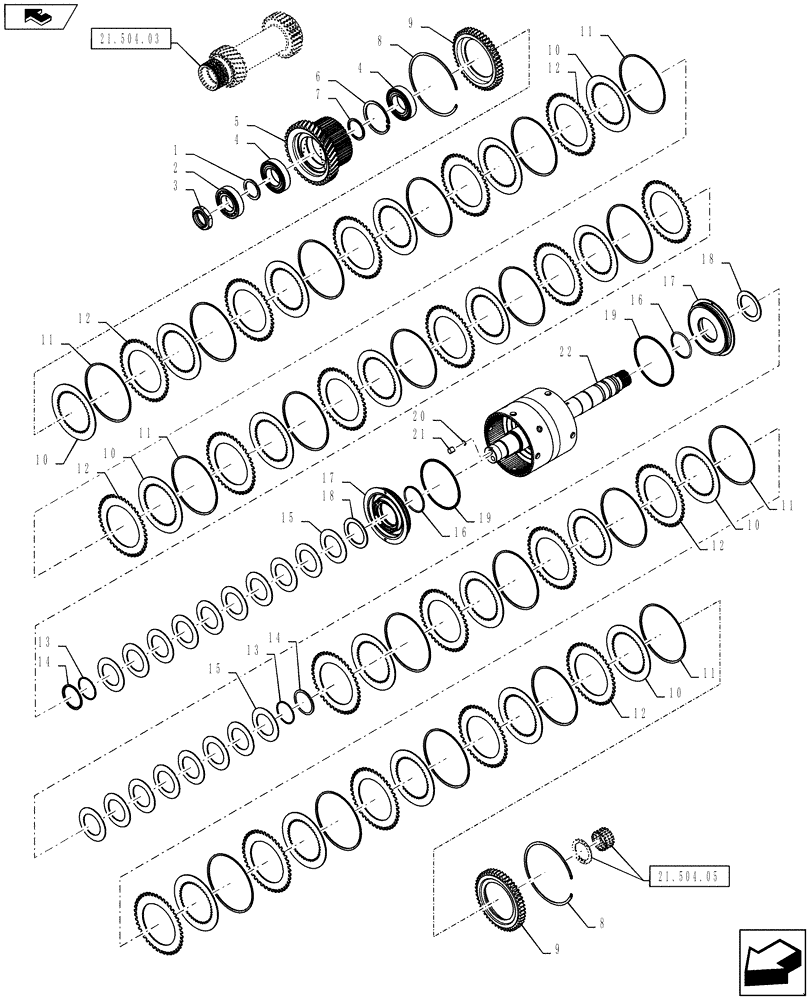

Запчасти Case IH PUMA 145 (21.504.04) - TRANSMISSION - TRANSMISSION CLUTCH (21) - TRANSMISSION

1

84358262

SPACER,45mm ID x 58mm OD x 3.5mm L

1шт.

2

84374621

ROLLER BEARING,45mm ID x 85mm OD x 19mm Thk

1шт.

3

5147930

RING NUT,M45 x 1.5

1шт.

4

87591960

BALL BEARING,50mm ID x 90mm OD x 20mm W

2шт.

5

84365358

HUB

1шт.

6

11062476

SNAP RING,M90, Int

1шт.

7

84358263

SPACER

1шт.

8

5122844

SNAP RING,168mm, 2mm Thk, Int

2шт.

9

84365499

THRUST PLATE,53T, 173mm OD

2шт.

10

87727505

CLUTCH PACK

1шт.

11

5166536

SPRING,173mm OD x 1.27mm Thk

20шт.

12

87727506

CLUTCH PACK

1шт.

13

5175981

CIRCLIP,1.5mm Thk

2шт.

14

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

15

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

18шт.

16

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

2шт.

17

84356485

PISTON

2шт.

18

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

2шт.

19

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

2шт.

20

86637641

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

3шт.

21

14536590

PLUG,10.00mm Dia x 19.80mm L

3шт.

22

84356445

DRIVEN SHAFT

Incl 21

1шт.
