Запчасти Case IH PUMA 145 (21.136.03) - HYDRAULIC MANIFOLD - TRANSMISSION CONTROL (21) - TRANSMISSION

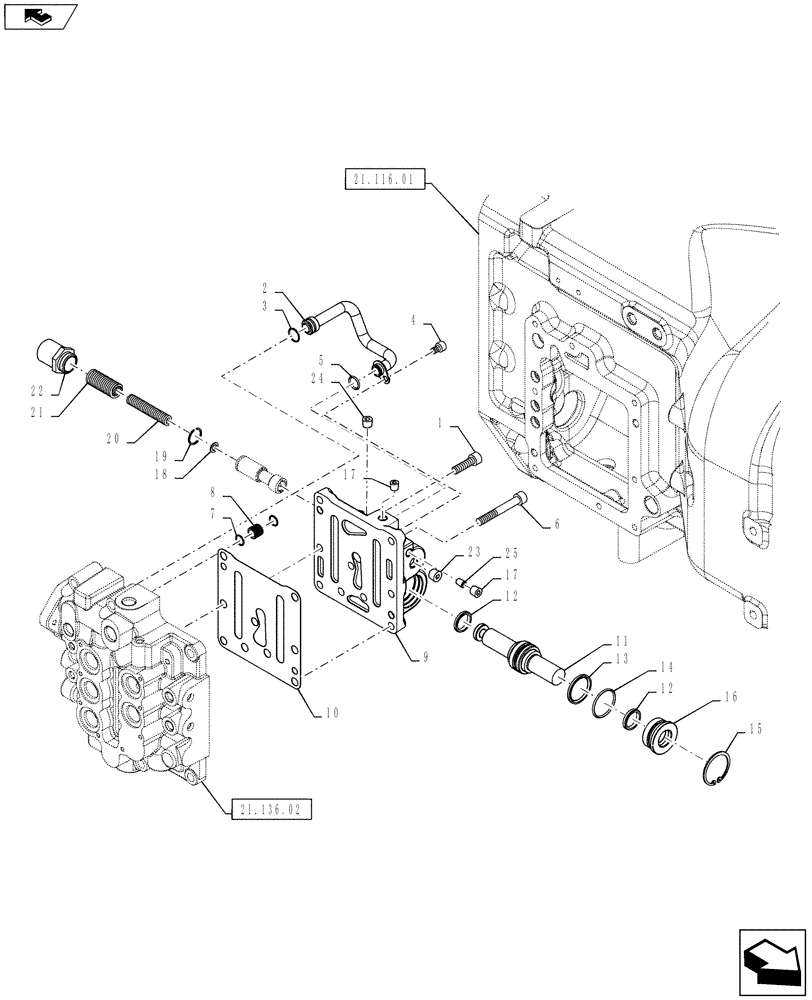

Схема запчастей Case IH PUMA 145 - (21.136.03) - HYDRAULIC MANIFOLD - TRANSMISSION CONTROL (21) - TRANSMISSION
16
23
20
24
2
21
4
14
25
10
19
5
6
17
18
12
15
9
17
home
21.136.02
21.116.01
11
22
1
12
8
3
13
7

Артикул

Название

Примечание

Количество

1

14307620

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

2

87722691

TUBE

1шт.

3

14453480

O-RING,17.17mm ID x 1.78mm

1шт.

4

14306120

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

6

14309124

SCREW,Hex Soc Hd, M10 x 1.25 x 75, 8.8

1шт.

7

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

6шт.

8

5172178

UNION,11mm ID x 14mm L

3шт.

9

87719634

DISTRIBUTOR

Incl 17 - 25

1шт.

10

87725760

GASKET,0.5mm Thk

1шт.

11

84143472

SPOOL,24mm OD x 152mm L

1шт.

12

81902618

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

13

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

SEALRING

1шт.

14

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

15

11060276

SNAP RING,M47, Int

1шт.

16

84378612

PLUG,42mm ID

1шт.

17

10269401

PLUG,Taper Thd, Hex Skt, M12 x 1.5 x 11mm, 4.8

2шт.

18

12638121

WASHER,5.15mm ID x 14mm OD x 1mm Thk

1шт.

19

5114438

SNAP RING,1.2mm Thk, Ext

1шт.

20

5114392

SPRING,21.5mm OD x 84.5mm L

1шт.

21

5114391

SPRING,14mm OD x 100mm L

1шт.

22

5121313

PLUG,36mm OD

1шт.

23

10269504

PLUG,M14 x 1.5

1шт.

24

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.

25

87634955

ORIFICE,M8 x 1.25 x 2mm ID x 11mm L

1шт.

Выбрано товаров: 25
