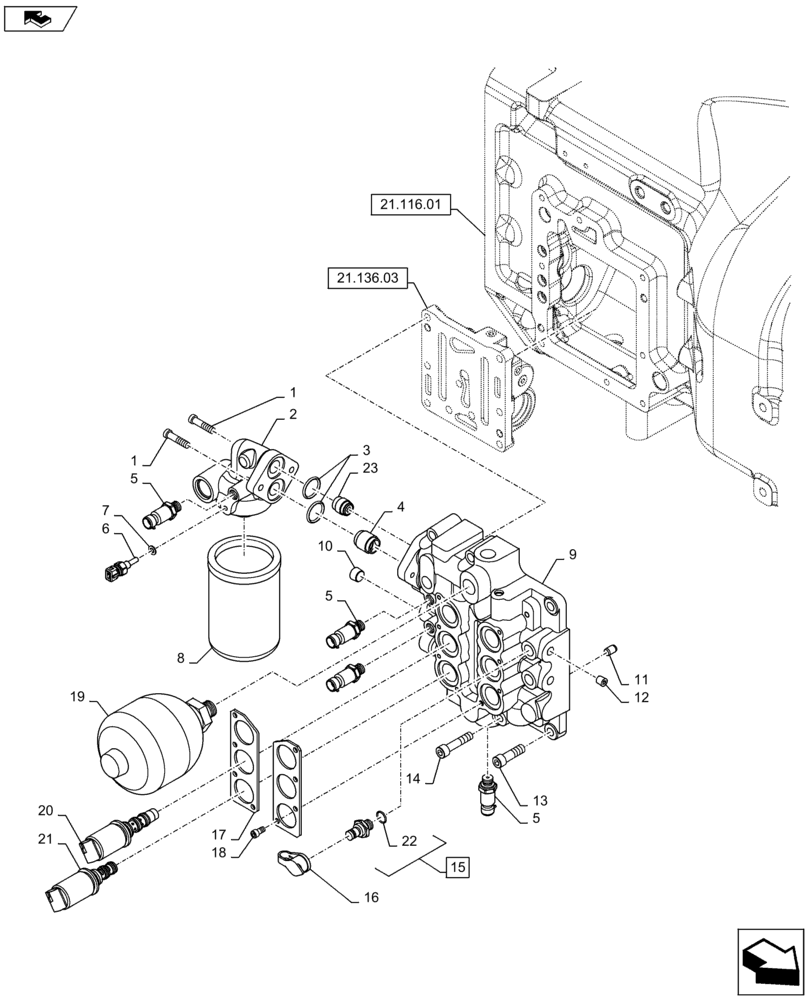

Запчасти Case IH PUMA 145 (21.136.02) - HYDRAULIC MANIFOLD - TRANSMISSION CONTROL (21) - TRANSMISSION

1

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

2

84365305

FILTER HEAD

1шт.

3

86629540

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

4

84323608

CHECK VALVE

1шт.

5

87678027

PRESSURE SWITCH

Transducer, 0 - 40 Bar

4шт.

6

87484581

SENSOR

Temperature

1шт.

7

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

8

87588814

HYDRAULIC OIL FILTER,151mm L

1шт.

9

84195279

HYDRAULIC MANIFOLD

1шт.

10

10269601

PLUG,M16 x 1.5

1шт.

11

10839710

DOWEL,M10 x 15.00mm

4шт.

12

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

7шт.

13

14307621

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

13

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

14

14308121

HEX SOC SCREW,M10 x 1.25 x 60mm, Cl 8.8

3шт.

15

5185423

COUPLING

Diagnosis, Incl 22

2шт.

16

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

2шт.

17

87364740

MOUNTING PLATE

2шт.

18

14305120

SCREW,Hex Soc Hd, M6 x 12, 8.8

8шт.

19

87314179

ACCUMULATOR,0.75L

1шт.

20

87472229

CARTRIDGE

1шт.

21

87739558

SOLENOID VALVE,14W

Green Connector

4шт.

21

87739558R

REMAN-SOLENOID

Green Connector

4шт.

21

87739558C

CORE-SOLENOID

Return Number

4шт.

22

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

23

87482254

CHECK VALVE

1шт.
