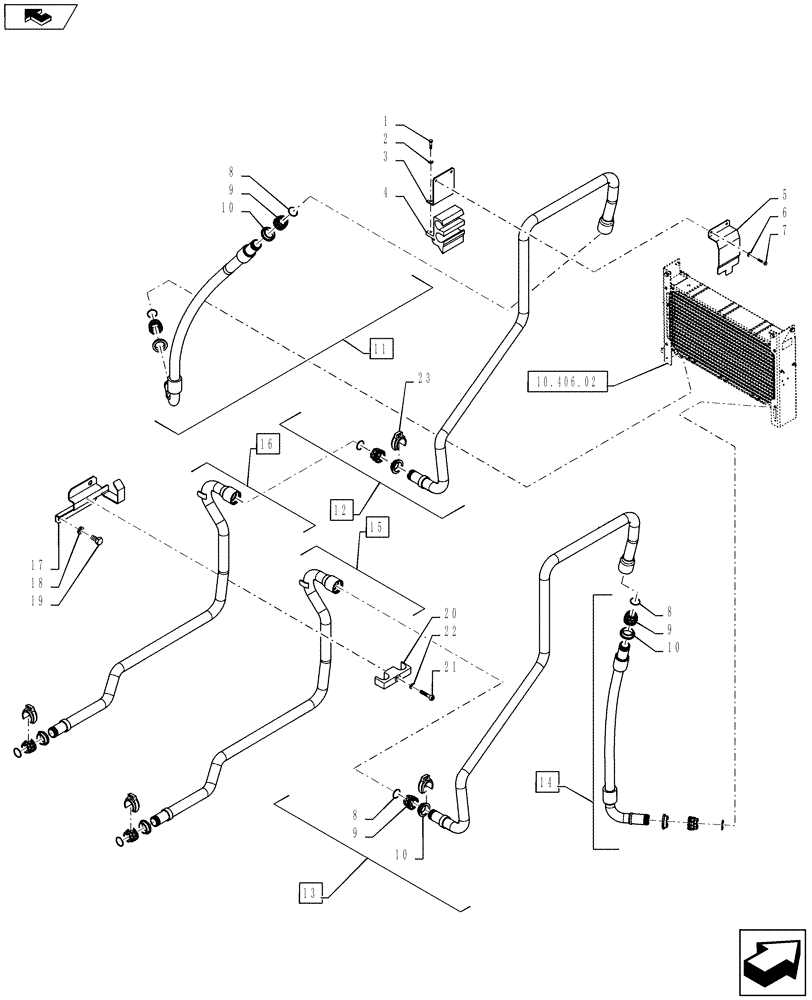

Запчасти Case IH PUMA 145 (21.109.01) - TRANSMISSION, OIL COOLER LINES (21) - TRANSMISSION

1

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

2

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

3

87494277

BRACKET

1шт.

4

84123934

HOLDER

1шт.

5

87489418

COVER

1шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

7

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

8

84156021

O-RING,24mm ID x 2.0mm

8шт.

9

84156016

LOCKING RING,34.7mm OD x 24mm L

8шт.

10

84156020

RETAINER,28mm ID

8шт.

11

84184075

HOSE,25.4mm ID x 805mm L, SAE 100R6

Incl 8, 9 & 10

1шт.

12

84156080

TUBE

Incl 8, 9 & 10

1шт.

13

84156082

TUBE

Incl 8, 9 & 10

1шт.

14

84184076

HOSE,28mm ID

Incl 8, 9 & 10

1шт.

15

84187431

TUBE

Incl 8, 9 & 10

1шт.

16

84187432

TUBE

Incl 8, 9 & 10

1шт.

17

87735471

BRACKET

1шт.

18

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

19

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

3шт.

20

84211462

CLAMP BRACKET

1шт.

21

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

22

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

23

84156015

CLIP,28mm LP

8шт.
