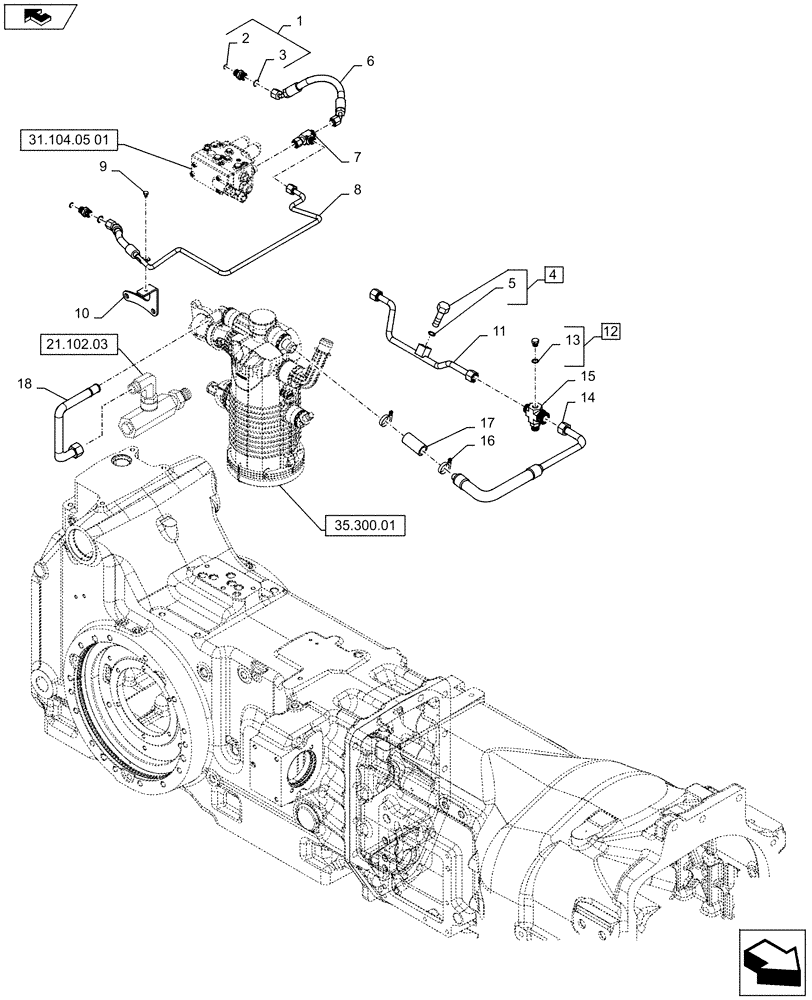

Запчасти Case IH PUMA 145 (21.102.02[01]) - TRANSMISSION LUBRICATION LINES - C7113 (21) - TRANSMISSION

1

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 2, 3

2шт.

2

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

3

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

214389

PLUG,3/4" - 16 ORB

Incl 5

1шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

84140196

HYDRAULIC HOSE

1шт.

7

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

8

84140201

PRESSURE PIPE

RH, Cylinder

1шт.

9

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

10

84181245

BRACKET

RH, Cylinder Pipe

1шт.

11

84140173

PRESSURE PIPE

Lube

1шт.

12

86611704

PLUG,Hex, M14 x 1.5 ORB

Incl 13

1шт.

13

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

14

84140217

PRESSURE PIPE

Pressure, Lube

1шт.

15

84151085

TEE

1шт.

16

13000590

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

17

87653735

HOSE,25mm ID x 70mm L

Sleeve

1шт.

18

84140158

PRESSURE PIPE

G Port

1шт.
