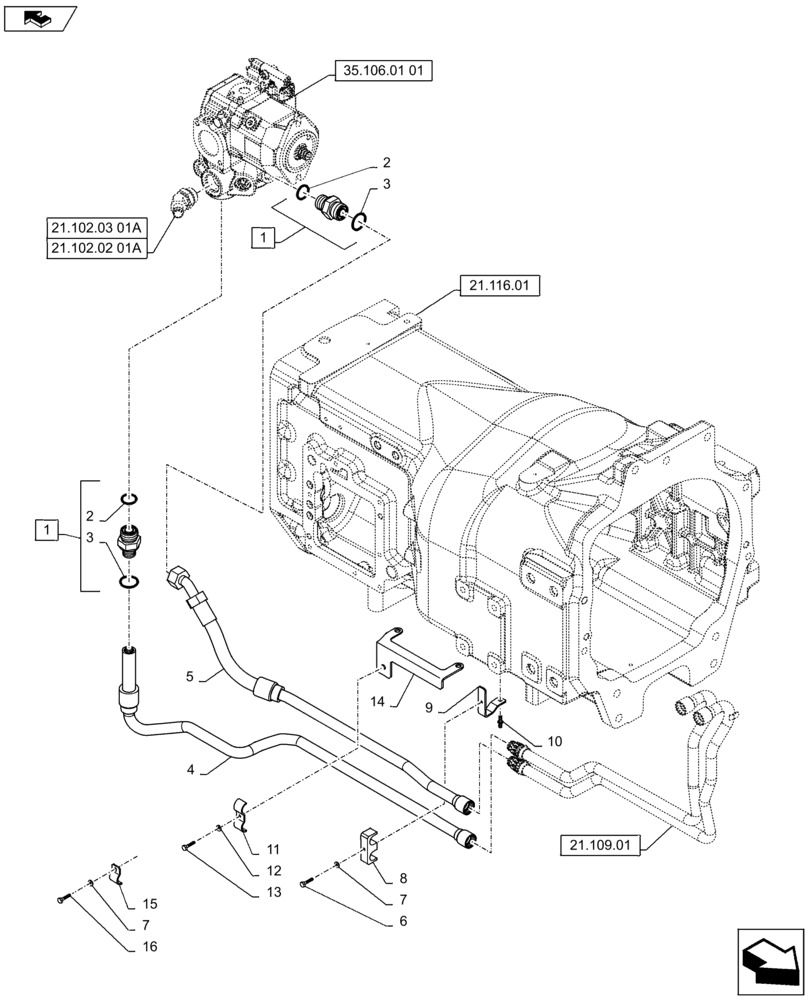

Запчасти Case IH PUMA 145 (21.102.01[01A]) - TRANSMISSION LUBRIFICATION LINE - D7113 (21) - TRANSMISSION

1

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

Incl 2, 3

2шт.

2

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

3

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

4

84371321

HYD TUBE

Pressure, From Cooler

1шт.

5

84371319

HYD TUBE

Pressure, Supply to Cooler

1шт.

6

15212821

BOLT,Hex, M6 x 45mm, Cl 8.8, Full Thd

1шт.

7

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

8

87608298

CLAMP BRACKET

1шт.

9

84402817

SUPPORT

1шт.

10

87316808

STUD,M8 x 1.25mm

1шт.

11

84238526

CLAMP BRACKET

1шт.

12

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

13

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

14

84402819

BRACKET

1шт.

15

84402876

BRACKET

1шт.

16

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.
