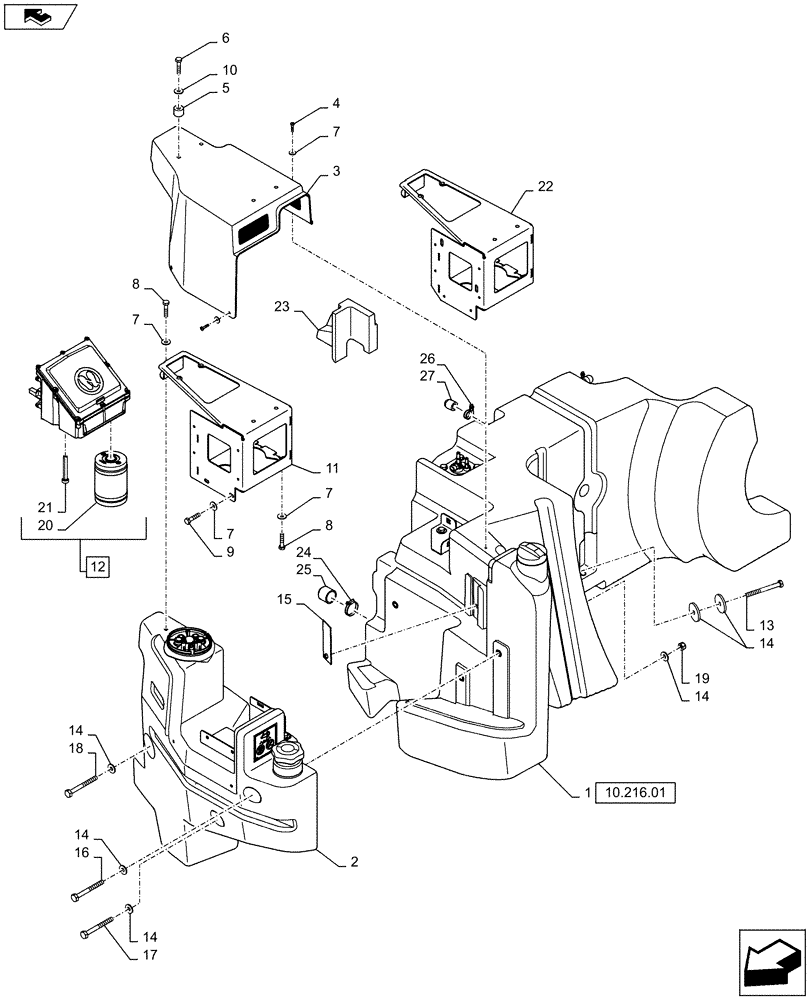

Запчасти Case IH PUMA 145 (10.500.01) - VAR - 743672, 330142, 743670, 336142, 743671, 337142, 390142 - DEF/ADBLUE TANK AND RELATED PARTS (10) - ENGINE

1

84364740

FUEL TANK

1шт.

2

84364734

EXHAUST FLUID TANK,56L

1шт.

3

84362404

COVER

1шт.

4

84353724

SCREW,Pozidriv Pan Hd, M8 x 20mm, Cl 4.8, Full Thd

3шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

5

84358644

STOP DEVICE

4шт.

6

84361275

SCREW,Pozidriv Pan Hd, M8 x 30mm, Cl 4.8, Full Thd

4шт.

6

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

8

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

11

84362482

BRACKET

1шт.

11

84398162

BRACKET

1шт.

12

84246892

MODULE

ECU, DENOX2 Supply, Incl 20, 21

1шт.

12

84246892R

REMAN-MODULE

DENOX2 Supply

1шт.

12

84246892C

CORE-MODULE

Return Number

1шт.

13

86508621

BOLT,Hex, M10 x 130mm, Cl 10.9

1шт.

14

87024930

WASHER,10.8mm ID x 50mm OD x 3mm Thk

8шт.

15

84331975

PLATE

1шт.

16

84077701

BOLT,Hex, M10 x 250mm, Cl 8.8, Full Thd

1шт.

17

2142046

BOLT,Hex, M10 x 1.5 x 290mm, Cl 10.9

1шт.

18

2186540

BOLT,Hex, M10 x 215mm, Cl 10.9

1шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

20

84254852

FILTER

Element, DENOX2

1шт.

21

84247272

FILTER,In-Line

In-Line, DEF

1шт.

22

84398162

BRACKET

1шт.

23

84385401

FOAM

1шт.

24

82036462

CLAMP,50mm - 70mm

1шт.

25

82005423

CAP,47.5mm ID X 45mm

1шт.

26

82039343

HOSE CLAMP,16mm - 27mm

1шт.

27

83952371

CAP,15mm ID X 25mm

1шт.
