Запчасти Case IH PUMA 145 (10.406.03) - VAR - 330414, 330427, 330429, 330430 - RADIATOR FAN SHROUD AND SEALS (10) - ENGINE

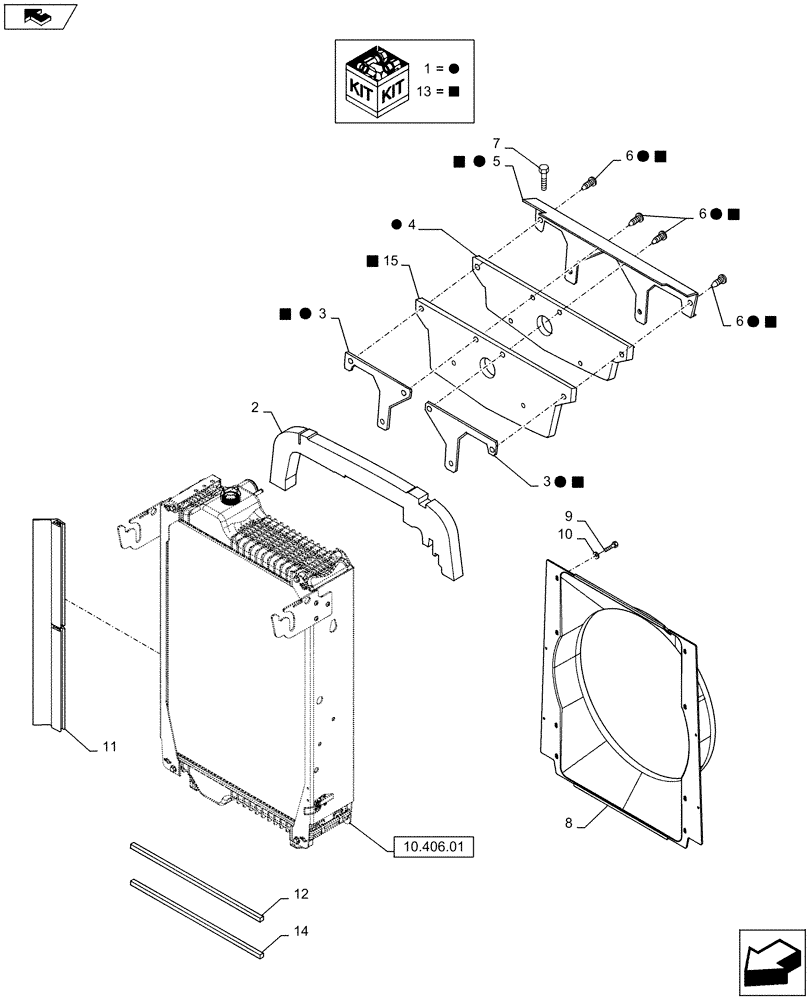

Схема запчастей Case IH PUMA 145 - (10.406.03) - VAR - 330414, 330427, 330429, 330430 - RADIATOR FAN SHROUD AND SEALS (10) - ENGINE
9
1
13
13
13
1
15
1
6
1
10.406.01
13
4
5
13
7
10
3
11
1
13
1
2
13
6
13
8
12
1
13
6
3
14
1
1
home

Артикул

Название

Примечание

Количество

1

87668400

DEFLECTOR

Incl 3 - 6, Serial Range: -C7146

1шт.

1

84382862

BAFFLE

Incl 3 - 6, Start Serial: D7146

1шт.

2

84187977

GASKET

1шт.

3

87649703

DEFLECTOR

2шт.

4

87668399

FOAM

, Serial Range: -C7146

1шт.

4

NSS

NOT SOLD SEPARAT

Foam, Incl. in 1, Start Serial: D7146

1шт.

5

87649701

DEFLECTOR

1шт.

6

87635853

STUD,7.1mm D

6шт.

7

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

8

87719160

SHROUD

1шт.

9

87377778

SCREW,Hex, M6 x 16mm, Cl 8.8

8шт.

10

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

11

87730096

GASKET

Hood to Radiator Side, LH

2шт.

12

87315613

SEAL,445mm x 20mm x10mm

Radiator to Baffle Plate

1шт.

13

87668401

DEFLECTOR

For Suspended Front Axle, VAR. 330414 - 330427 - 330429 - 330430, Incl 3 - 6, Serial Range: -C7146

1шт.

13

84382864

BAFFLE

For Suspended Front Axle, VAR. 330414 - 330427 - 330429 - 330430, Incl 3 - 6, Start Serial: D7146

1шт.

14

87315614

SEAL,545mm x 25mm x 10mm

Baffle Plate to Support, Serial Range: -C7146

1шт.

15

87649704

FOAM

For Suspended Front Axle, VAR. 330414 - 330427 - 330429 - 330430, Serial Range: -C7146

1шт.

15

NSS

NOT SOLD SEPARAT

Foam, Incl. in 13; For Suspended Front Axle, VAR. 330414 - 330427 - 330429 - 330430, Start Serial: D7146

1шт.

Выбрано товаров: 19
