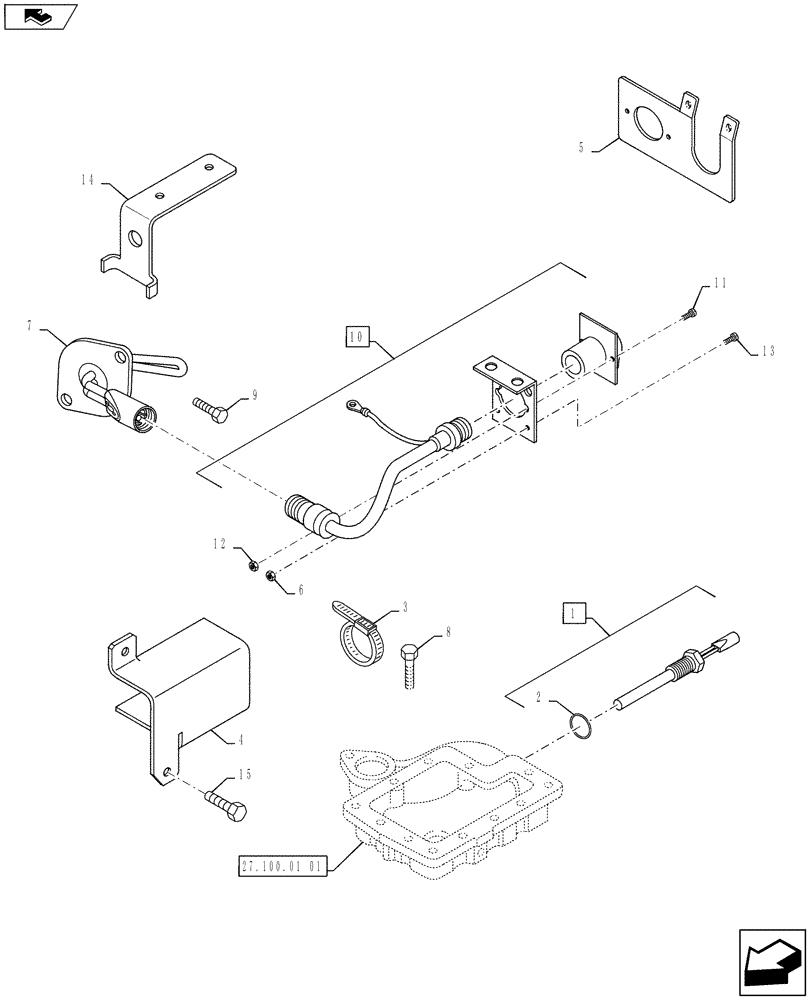

Запчасти Case IH PUMA 130 (10.254.07[01]) - VAR - 330206 - ENGINE BLOCK AND TRANSMISSION OIL HEATERS - 220V - C7114 (10) - ENGINE

1

82030789

HEATER,240V

Transmission Oil, 230V, Incl 2

1шт.

2

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

3

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

4

84278885

GUARD

1шт.

5

87315478

BRACKET

1шт.

6

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

7

87756078

HEATER,240V

Engine Block, 230V

1шт.

8

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

10

87756875

ELECTRIC CABLE

Engine Block Heater, 240V

2шт.

11

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

4шт.

12

10794011

NUT,M4, Cl 8

4шт.

13

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

14

87633005

BRACKET

1шт.

15

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.
