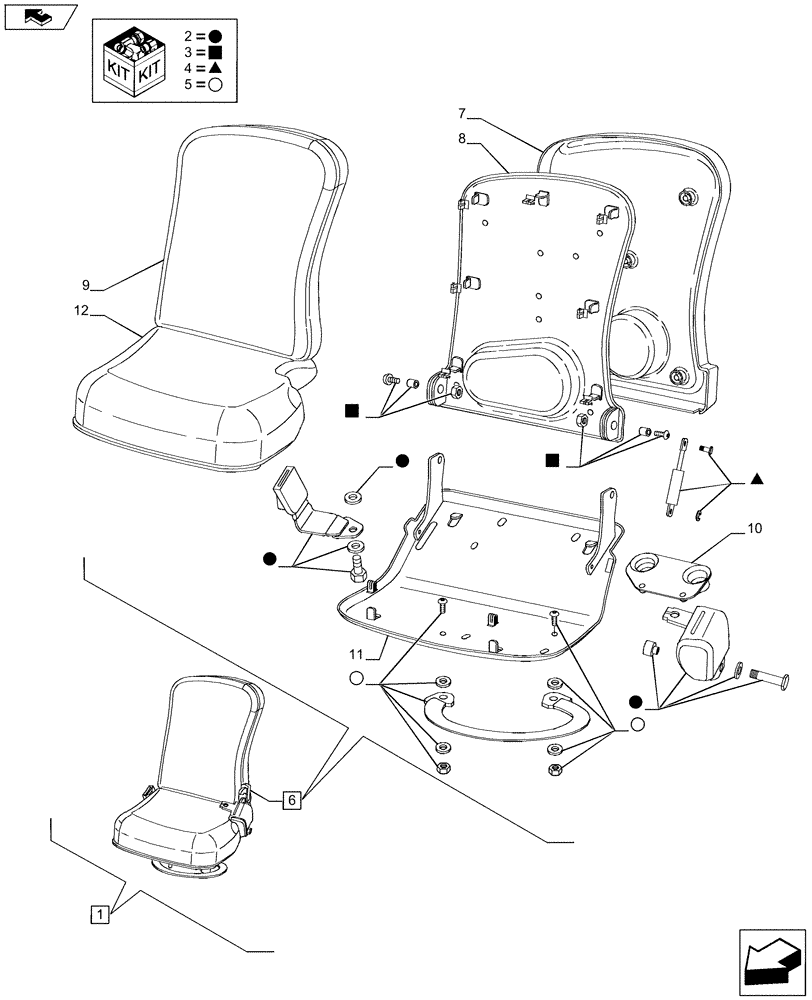

Запчасти Case IH PUMA 130 (88.090.15[02]) - DIA KIT, PASSENGER SEAT WITH BELT - BREAKDOWN (88) - ACCESSORIES

1

710036074

DIA KIT, TRACTOR

Instructional Seat, Incl 2 - 12

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82033397

SERVICE KIT

Seat Belt

1шт.

3

82033403

SERVICE KIT

Pivot Bearing

1шт.

4

82033399

SERVICE KIT

Gas Strut

1шт.

5

82033405

KIT

Grab Handle

1шт.

6

87487002

SEAT

Incl 2 - 5, 7 - 12

1шт.

7

82033401

KIT

Tray

1шт.

8

84146874

SEAT SUPPORT

Back Pan

1шт.

9

84146851

BACKREST

Back Cushion

1шт.

10

84146875

SEAT ACCESSORY

Cab Adaptor

1шт.

11

84146873

SEAT SUPPORT

Seat Pan

1шт.

12

84146864

SEAT CUSHION

Seat Cushion

1шт.
