(88.090.08) - DIA KIT, INTERNAL REAR VIEW MIRRORS

Запчасти Case IH PUMA 130 (88.090.08) - DIA KIT, INTERNAL REAR VIEW MIRRORS (88) - ACCESSORIES

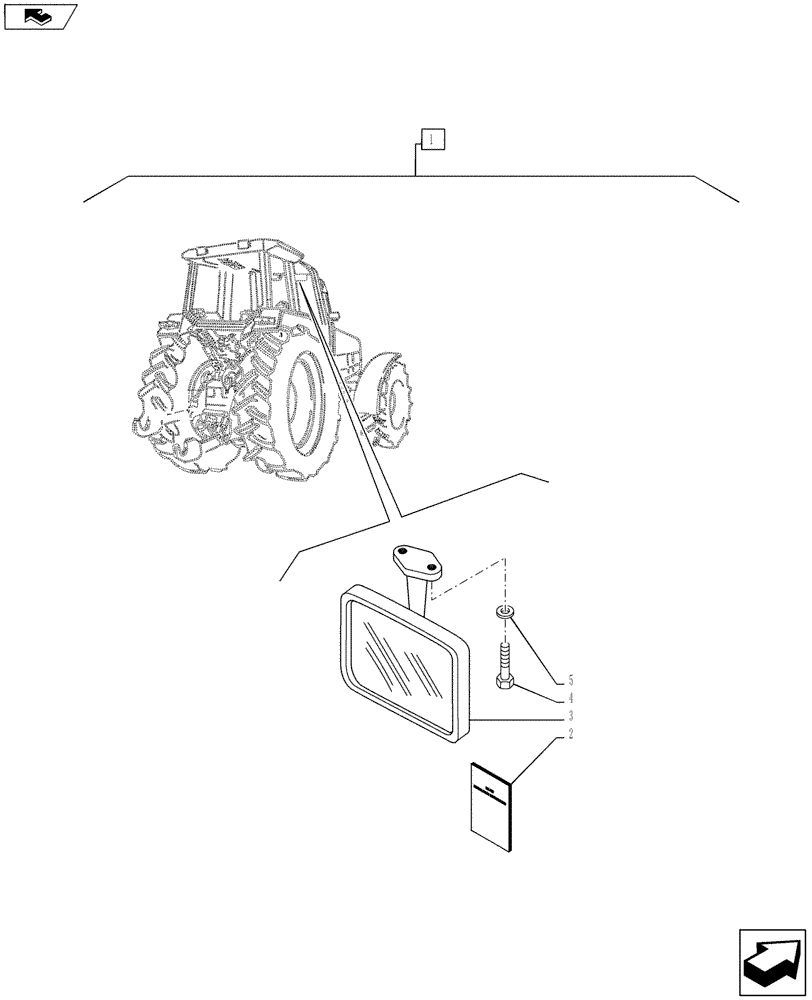

Схема запчастей Case IH PUMA 130 - (88.090.08) - DIA KIT, INTERNAL REAR VIEW MIRRORS (88) - ACCESSORIES
2
home
4
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719876014

DIA KIT, TRACTOR

Wide View Internal Mirror, Incl 2 - 5

1шт.

2

87750082

INSTRUCTION

1шт.

3

82023028

REAR VIEW MIRROR

1шт.

4

82880826

SCREW,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

5

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.
