Запчасти Case IH PUMA 130 (88.082.01[03]) - DIA KIT, EUROPEAN LOADER READY -FRONT LOADER HARNESS (88) - ACCESSORIES

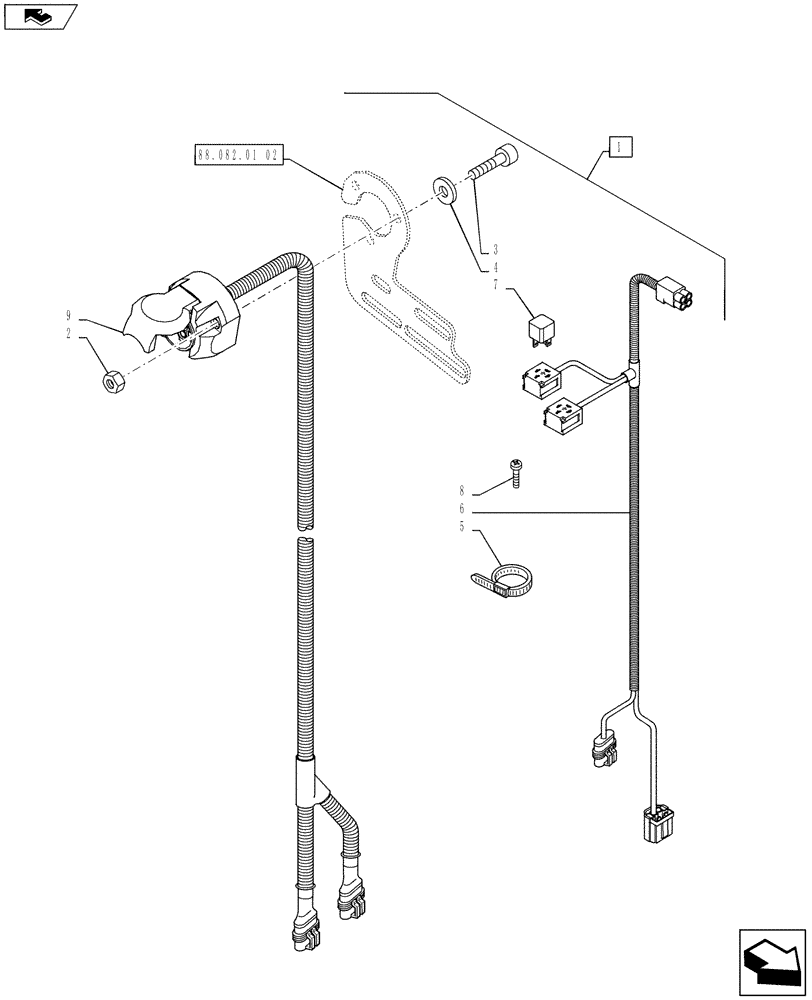

Схема запчастей Case IH PUMA 130 - (88.082.01[03]) - DIA KIT, EUROPEAN LOADER READY -FRONT LOADER HARNESS (88) - ACCESSORIES
2
3
4
9
8
1
7
6
5
88.082.01 02
home

Артикул

Название

Примечание

Количество

1

719705034

DIA KIT, TRACTOR

Loader Ready, Incl 2 - 9. Includes Parts on Figures 88.082.01 01 - 04

1шт.

2

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

3шт.

3

14358721

HEX SOC SCREW,M5 x 35mm, Cl 8.8

3шт.

4

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

3шт.

5

82012869

CABLE TIE,300mm L, Nylon, Black

5шт.

6

84167030

WIRE HARNESS

1шт.

7

82017871

RELAY,12V, 20A

2шт.

8

15905301

SELF-TAP SCREW,Cross Pan Hd, M6.3 x 16

4шт.

9

87742281

WIRE HARNESS

1шт.

Выбрано товаров: 9
