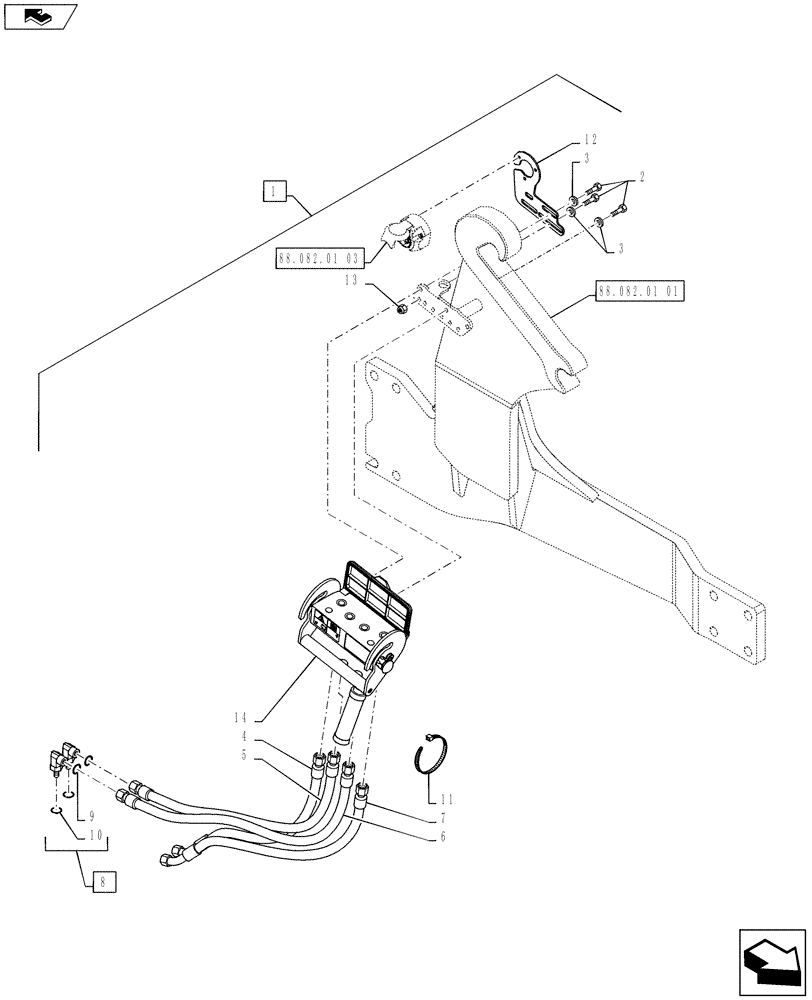

Запчасти Case IH PUMA 130 (88.082.01[02]) - DIA KIT, EUROPEAN LOADER READY - FAST-FITTING CONNECTION AND PIPES (88) - ACCESSORIES

1

719705034

DIA KIT, TRACTOR

Loader Ready, Incl 2 - 14. Includes Parts on Figures 88.082.01 01 - 04

1шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

3

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

4

84382629

HOSE

Loader Lower

1шт.

5

84382633

HOSE

Loader Raise

1шт.

6

84382635

HOSE

Loader Crowd

1шт.

7

84382637

HOSE

Loader Tip

1шт.

8

82031421

90 ELBOW,13/16"-16 ORFS x M18 x 1.5 ORB

Incl 9, 10

2шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

10

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

11

81844383

CABLE TIE

1шт.

12

87736290

BRACKET

1шт.

13

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

1шт.

14

87733579

COUPLING

1шт.
