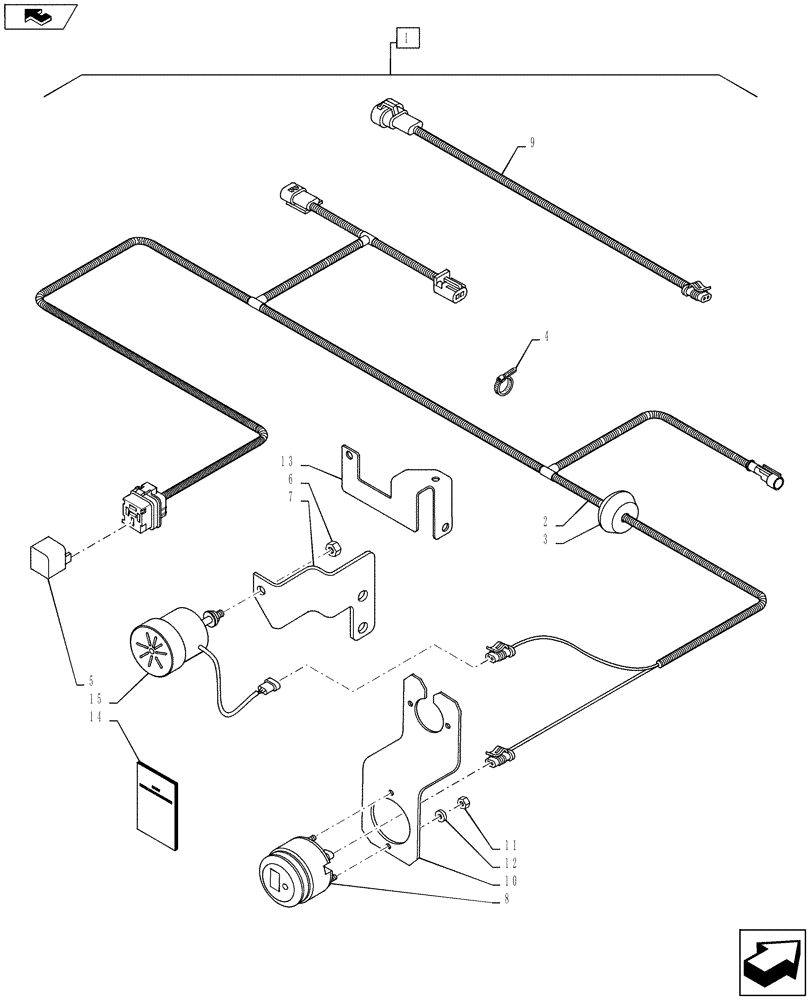

Запчасти Case IH PUMA 130 (88.055.14[01]) - DIA KIT, REVERSE ALARM AND LIGHT - HARNESS AND RELATED PARTS - C7195 (88) - ACCESSORIES

1

719161014

DIA KIT, TRACTOR

Reverse Alarm and Light, Incl 2 - 15

1шт.

2

84280610

INSTRUCTION

1шт.

3

82016008

GROMMET,45.47mm OD x 32mm ID x 19.05mm Thk

1шт.

4

87718512

COLLAR,198 mm L

3шт.

5

82013124

RELAY,12V, 30A

1шт.

6

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

7

87684972

BRACKET, SUPPORTING

1шт.

8

84185527

LIGHT,12V, 21W, Clear

1шт.

9

84251791

WIRE HARNESS

Reverse Alarm To Lamp

1шт.

10

84266813

BRACKET

1шт.

11

86509265

NUT,M5, Cl 10

2шт.

12

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

13

87599838

BRACKET

Fast Steer for Cl3 Front Axle, VAR 330631

1шт.

14

84272504

WIRE HARNESS

Reverse Alarm and Light, Incl 3

1шт.

15

87615634

REVERSE ALARM

1шт.
