(88.055.07) - DIA KIT, ADDITIONAL WORKLAMPS FOR "C" PILLAR

Запчасти Case IH PUMA 130 (88.055.07) - DIA KIT, ADDITIONAL WORKLAMPS FOR "C" PILLAR (88) - ACCESSORIES

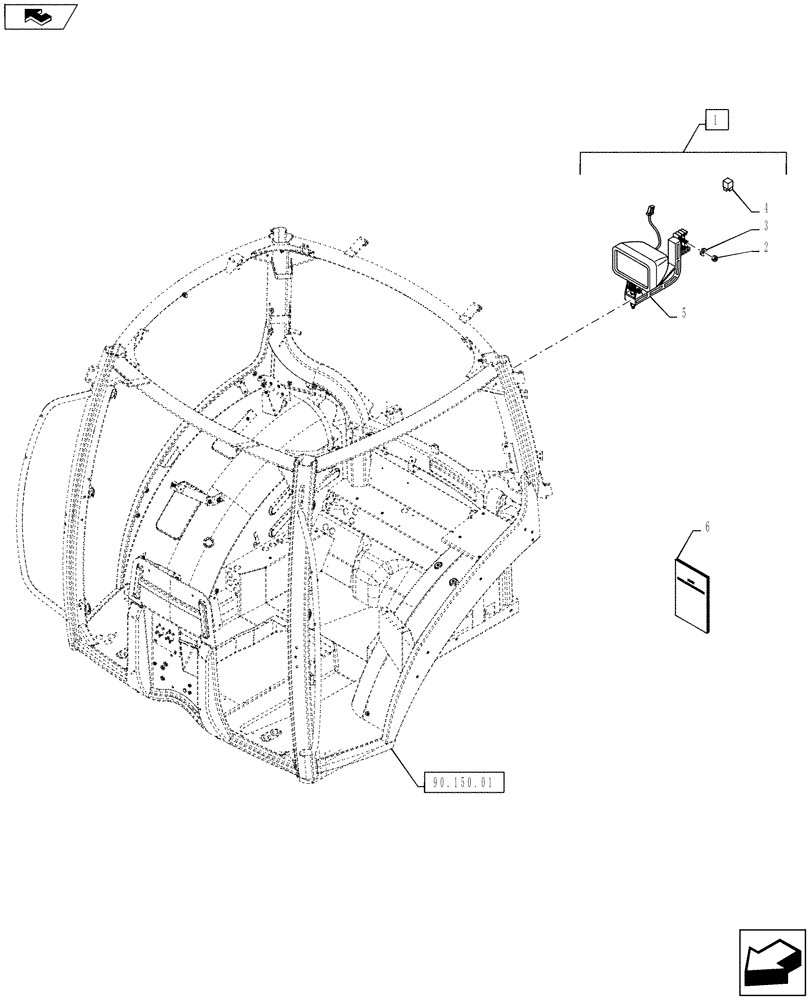

Схема запчастей Case IH PUMA 130 - (88.055.07) - DIA KIT, ADDITIONAL WORKLAMPS FOR "C" PILLAR (88) - ACCESSORIES
4
home
2
5
1
90.150.01
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719766044

DIA KIT, TRACTOR

Worklamps on C Pillars, Incl 2 - 6

1шт.

2

87591463

INSTRUCTION

1шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

4

82023238

RELAY,12V, 20A

1шт.

5

87733060

WORK LAMP,Halogen, 12V, 55W, Clear

2шт.

6

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.
