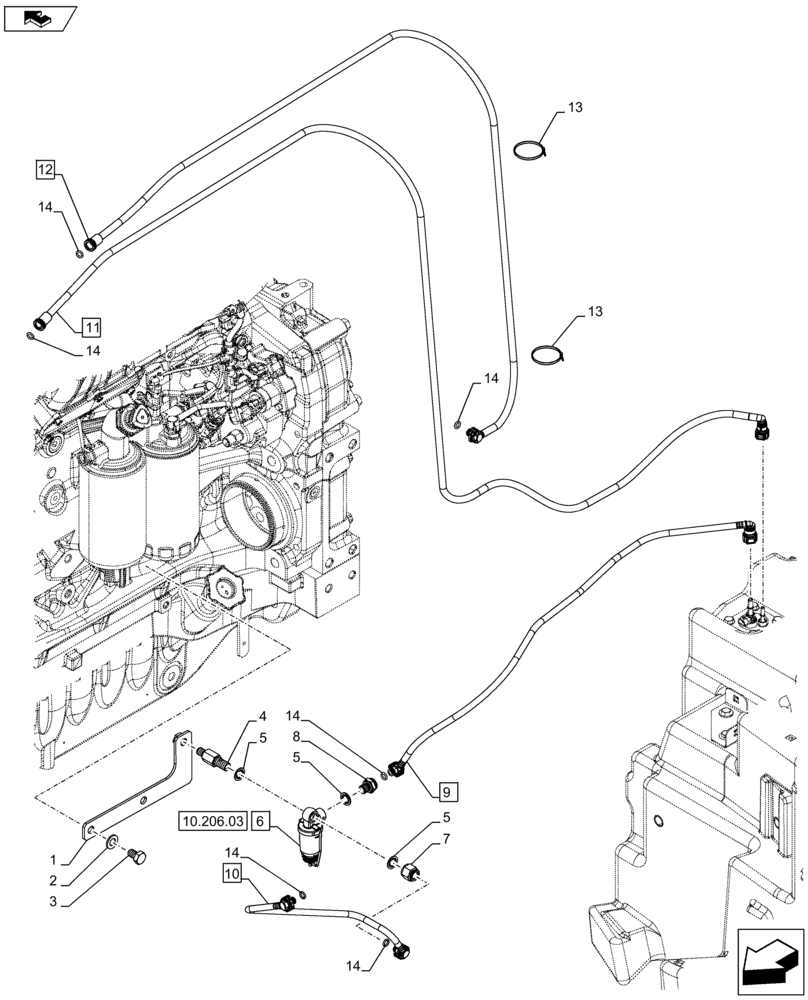

Запчасти Case IH PUMA 130 (10.216.0501[01]) - VAR - 331170 - FUEL COOLER, FUEL LINE (10) - ENGINE

1

87591419

HOLDER

ASSY

1шт.

2

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

3

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

4

87585662

HYD CONNECTOR,M12 x 1.75 x M14 x 1.5

1шт.

5

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

6

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

1шт.

7

87585673

HYD CONNECTOR

1шт.

8

4893833

HYD CONNECTOR

1шт.

9

84283031

FUEL TUBE

ASSY, Incl 14

1шт.

10

84337769

FUEL TUBE

ASSY, Incl 14

1шт.

11

84359922

FUEL HOSE

ASSY, Incl 14

1шт.

12

84359923

FUEL HOSE

ASSY, Incl 14

1шт.

13

86566989

CABLE TIE,208mm L

2шт.

14

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

6шт.
