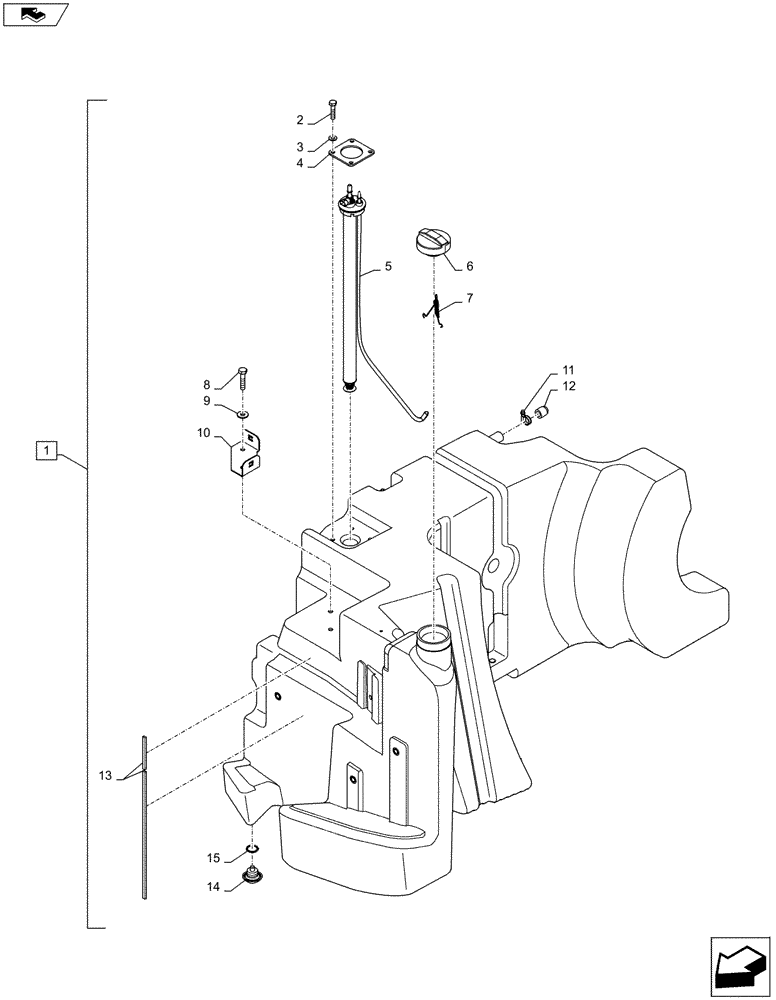

Запчасти Case IH PUMA 130 (10.216.01) - VAR - 743672, 743670, 743671, 390142 - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

1

84364740

FUEL TANK

Incl 2 - 15

1шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

3

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

4

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

5

84174018

FUEL GAUGE

1шт.

6

84547727

FILLER CAP,M59, Vented

1шт.

6

1-33-755-005

LOCKABLE FUEL CAP

1шт.

7

87490453

LINK CHAIN

1шт.

8

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

84329944

SUPPORT

1шт.

11

82039343

HOSE CLAMP,16mm - 27mm

1шт.

12

83952371

CAP,15mm ID X 25mm

Fuel Tank Balance Hose

1шт.

13

9501985

SEALING STRIP

1шт.

15

84180404

O-RING,3.5mm Thk x 39.0mm ID

1шт.
