Запчасти Case IH PUMA 130 (55.512.14) - VAR - 332703, 333703, 334703, 332021, 332023, 332024 - COMMAND ARM WITH SLIP CONTROL (RADAR) - CONTROLS (55) - ELECTRICAL SYSTEMS

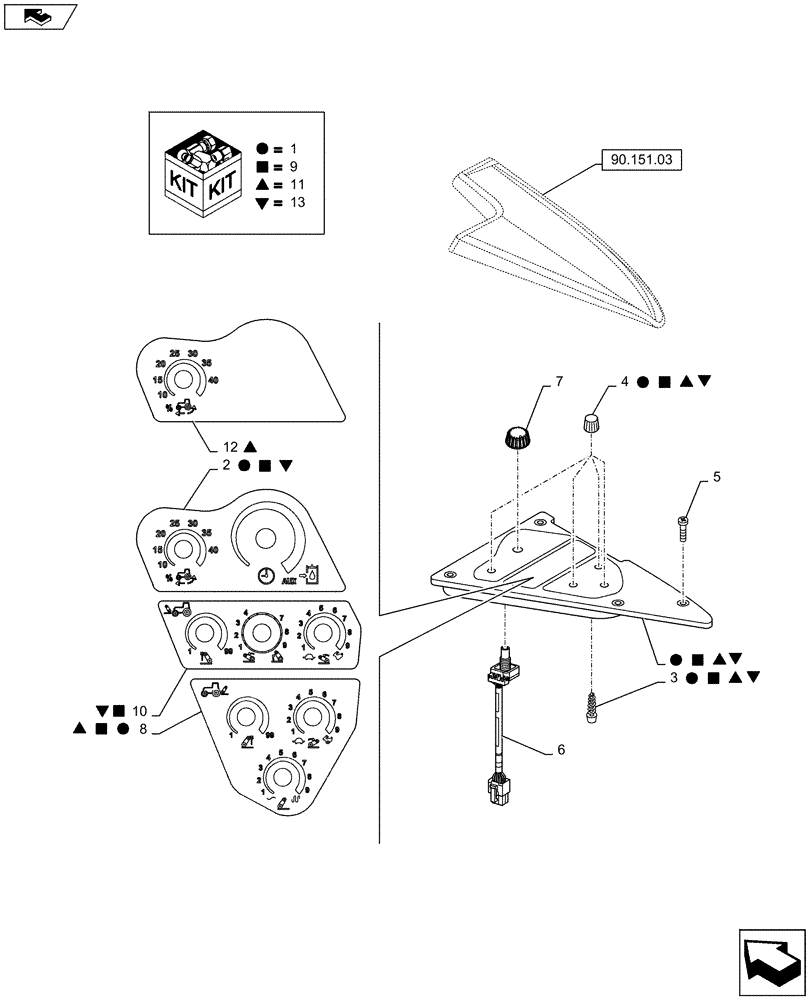

Схема запчастей Case IH PUMA 130 - (55.512.14) - VAR - 332703, 333703, 334703, 332021, 332023, 332024 - COMMAND ARM WITH SLIP CONTROL (RADAR) - CONTROLS (55) - ELECTRICAL SYSTEMS
8
11
9
1
6
12
5
11
2
9
home
4
9
13
11
11
11
3
9
9
90.151.03
11
13
9
9
1
1
1
1
1
13
1
13
11
10
13
7
9
13
13

Артикул

Название

Примечание

Количество

1

84168654

ELECTRIC PANEL

EHR w/Slip Control, VAR 332023

1шт.

2

84217909

DECAL

EHR w/Slip Control

1шт.

3

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

Qty 3 for VAR 332023, 332021, 332026. Qty 4 for VAR 332024

1шт.

4

82012988

KNOB

Qty 4 for VAR 332023, 332021, 332026. Qty 7 for VAR 332024

1шт.

5

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4шт.

6

87755846

POTENTIOMETER,5V, 30mA, 150mW

EHR w/Slip Control, VAR 332023. EHR for Front Hitch Management with Slip Control, Radar, VAR 332024

1шт.

7

87454709

KNOB

EHR w/Slip Control, VAR 332023. EHR for Front Hitch Management with Slip Control, Radar, VAR 332024

1шт.

8

84217912

DECAL

EDC, Rear Hitch

1шт.

9

84168658

ELECTRIC PANEL

EHR for Front Hitch Management with Slip Control, Radar, VAR 332024, St Valentin only, Serial Range: -C7202

1шт.

10

84217908

DECAL

EHR for Front Hitch Management with Slip Control, Radar, VAR 332024, St Valentin only

1шт.

11

84168656

ELECTRIC PANEL

Mech Remotes with Slip Control, Radar, VAR 332021

1шт.

12

84217910

DECAL

Mech Remotes with Slip Control, Radar, VAR 332021

1шт.

13

84394113

ELECTRIC PANEL

, Start Serial: D7202

1шт.

Выбрано товаров: 13
