Запчасти Case IH PUMA 130 (55.045.01) - VAR - 330414, 330427, 330429, 330430 - SUSPENDED FRONT AXLE - SENSOR AND RELATED PARTS (55) - ELECTRICAL SYSTEMS

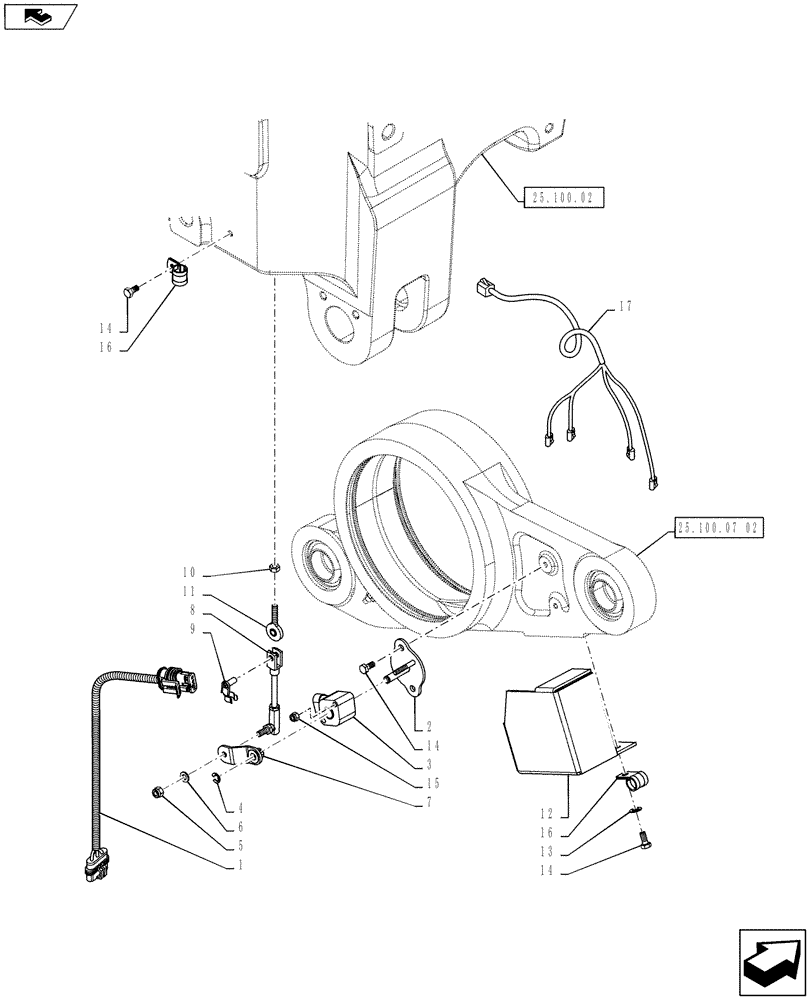

Схема запчастей Case IH PUMA 130 - (55.045.01) - VAR - 330414, 330427, 330429, 330430 - SUSPENDED FRONT AXLE - SENSOR AND RELATED PARTS (55) - ELECTRICAL SYSTEMS
13
6
11
25.100.07 02
home
8
4
14
5
10
2
16
12
25.100.02
16
3
15
9
14
14
17
7
1

Артикул

Название

Примечание

Количество

1

82022099

WIRE HARNESS

Suspension Potentiometer

1шт.

2

87584115

BRACKET

1шт.

3

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

4

11087871

CIRCLIP,M7

1шт.

5

12574211

NUT,M6 x 1, Cl 8

11шт.

6

83907686

WASHER,M6 x 6.4mm ID x 12.0mm OD x 1.5mm Thk

1шт.

7

82016939

ARM

1шт.

8

82016945

LINK

1шт.

9

82016944

PIN,6mm OD x 14mm L

1шт.

10

82879533

NUT

1шт.

11

82016943

EYE,M6 x 1

1шт.

12

82037906

GUARD

1шт.

13

10615474

LOCK WASHER,Ext Tooth, M6 x 11 x 0.7 Thk

6шт.

14

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

8шт.

15

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

16

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

17

87631728

WIRE HARNESS

Front Suspension Jump Lead

1шт.

Выбрано товаров: 17
