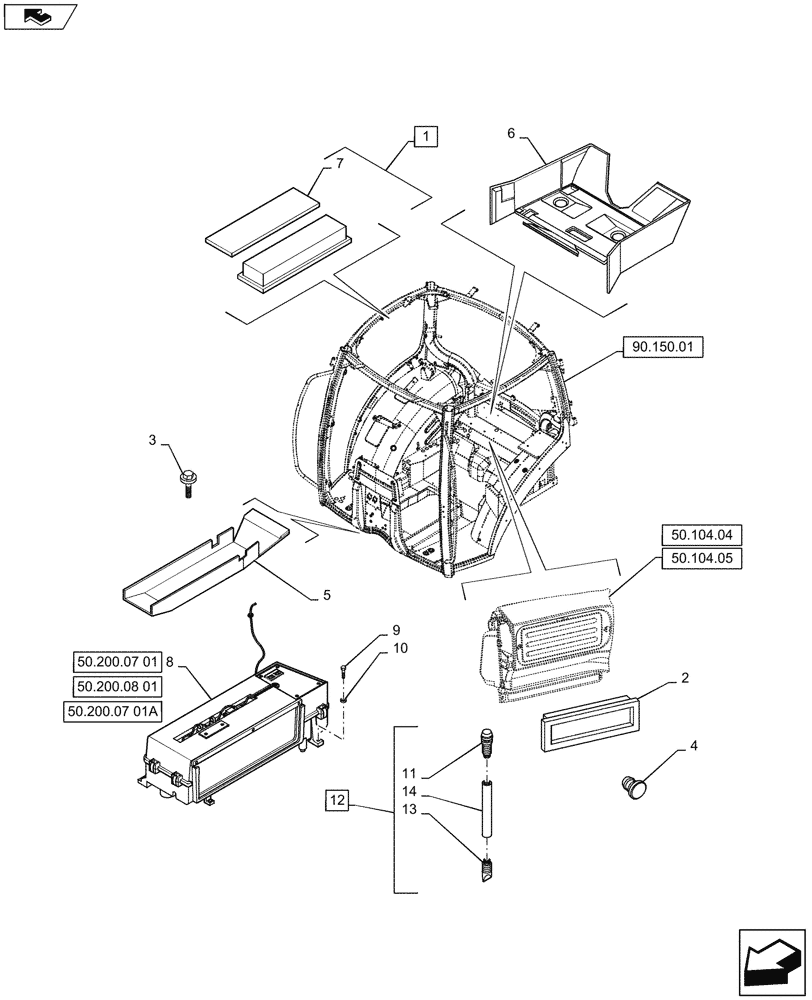

Запчасти Case IH PUMA 130 (50.104.03) - HEATING/AIR CONDITIONING - AIR CONDITIONER AND RELATED PARTS - CAB FILTER (50) - CAB CLIMATE CONTROL

1

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Fresh Air, Incl 7

2шт.

2

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

3

87581911

FLANGE BOLT,Hex, M6 x 25mm

2шт.

4

82027031

PLUG,M10

1шт.

5

87661587

INSULATOR

RH, Front Floor

1шт.

5

87661589

INSULATOR

LH, Front Floor

1шт.

6

87661585

INSULATOR

Rear Floor

1шт.

7

87726694

FOAM

2шт.

8

84210146

AIR CONDITIONER

, Serial Range: -C9027

1шт.

8

47490413

, Start Serial: D9027

1шт.

8

84233168

AIR CONDITIONER

w/ATC, VAR 330643

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

10

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

11

84231998

DRAIN

2шт.

12

84232466

TUBE

Drain, Incl 11, 13, 14

2шт.

13

84232000

CHECK VALVE

2шт.

14

84232468

HOSE,25.40 mm ID x 800.00 mm

2шт.
