Запчасти Case IH PUMA 130 (44.511.03) - VAR - 8852404, 8825401, 8817491, 8801601, 8859901 - FRONT WHEELS (44) - WHEELS

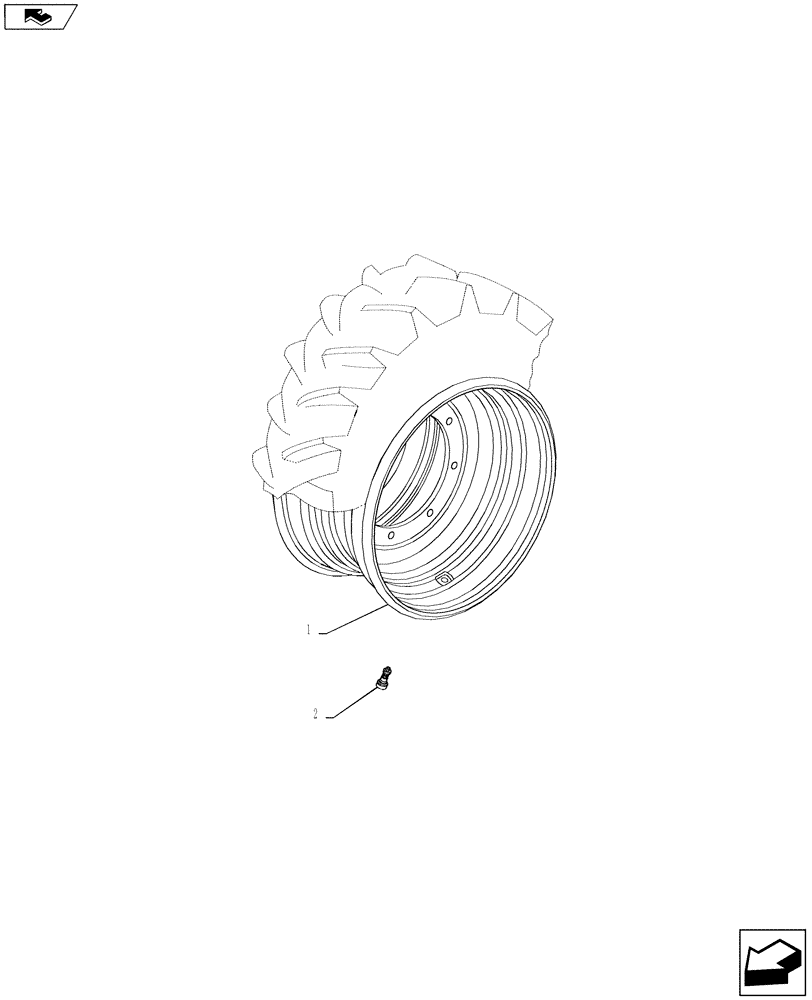

Схема запчастей Case IH PUMA 130 - (44.511.03) - VAR - 8852404, 8825401, 8817491, 8801601, 8859901 - FRONT WHEELS (44) - WHEELS
home
2
1

Артикул

Название

Примечание

Количество

1

82026363

WHEEL,W14X28, 8 Bolts, CASE Silver

W14x28, VAR. 8852401, uses Tire 420/70R28 R1W, CL3, EU only. VAR. 8825401, uses Tire 480/65R28 R1W, CL3, EU only

2шт.

1

82026609

WHEEL

W15x28, VAR. 8817491, uses Tire 440/80R28 R1W, CL4, EU only

2шт.

1

87586095

RIM

DW18x28, VAR. 8801601, uses Tire 520/60R28 R1W, EU only

2шт.

1

84143183

RIM

DW20Ax28, VAR. 8859901, uses Tire 600/60R28 R1W, EU only

2шт.

2

87323751

PNEUMATIC VALVE

2шт.

Выбрано товаров: 5
