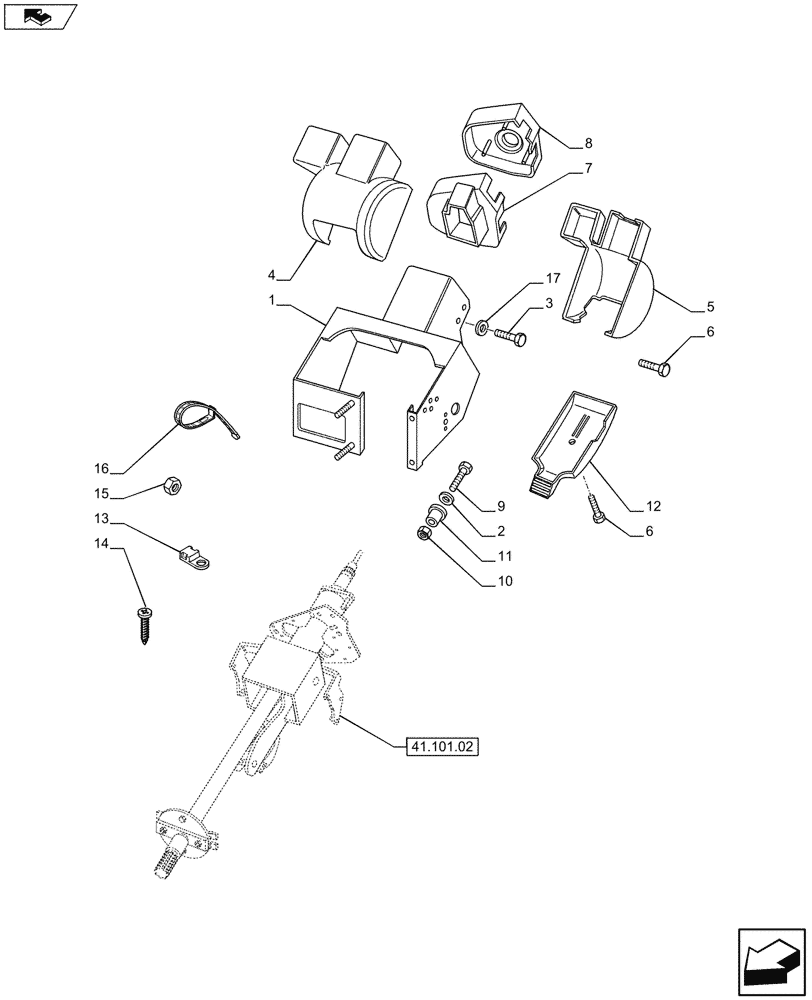

Запчасти Case IH PUMA 130 (41.101.03) - COVERING SUPPORT - STEERING COLUMN (41) - STEERING

1

87579189

SUPPORT

1шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

, Serial Range: -C9023

6шт.

2

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

, Start Serial: D9023

6шт.

3

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

4

82036446

COVER

1шт.

5

82036756

COVER

1шт.

6

13301111

SCREW,Pozidriv Flat Hd, Csk, M6 x 12mm, Cl 5.8

, Serial Range: -C9023

8шт.

6

84187819

SCREW,Torx Flat Hd, M6 x 12mm, Cl 5.8

, Start Serial: D9023

6шт.

7

87568062

COVER

1шт.

8

87569648

COVER

1шт.

9

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

4шт.

10

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

11

82027074

SPACER,20mm ID x 30mm OD x 25mm L

6шт.

12

82036958

HANDLE

Column Adjust, Serial Range: -C9023

1шт.

13

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

1шт.

14

83990793

SELF-TAP SCREW,Oval Cross, #10-16 x 1 1/4"

5шт.

15

86528579

NUT,M8 x 1.25

, Serial Range: -C9023

1шт.

15

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

, Start Serial: D9023

1шт.

16

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

17

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

4шт.
