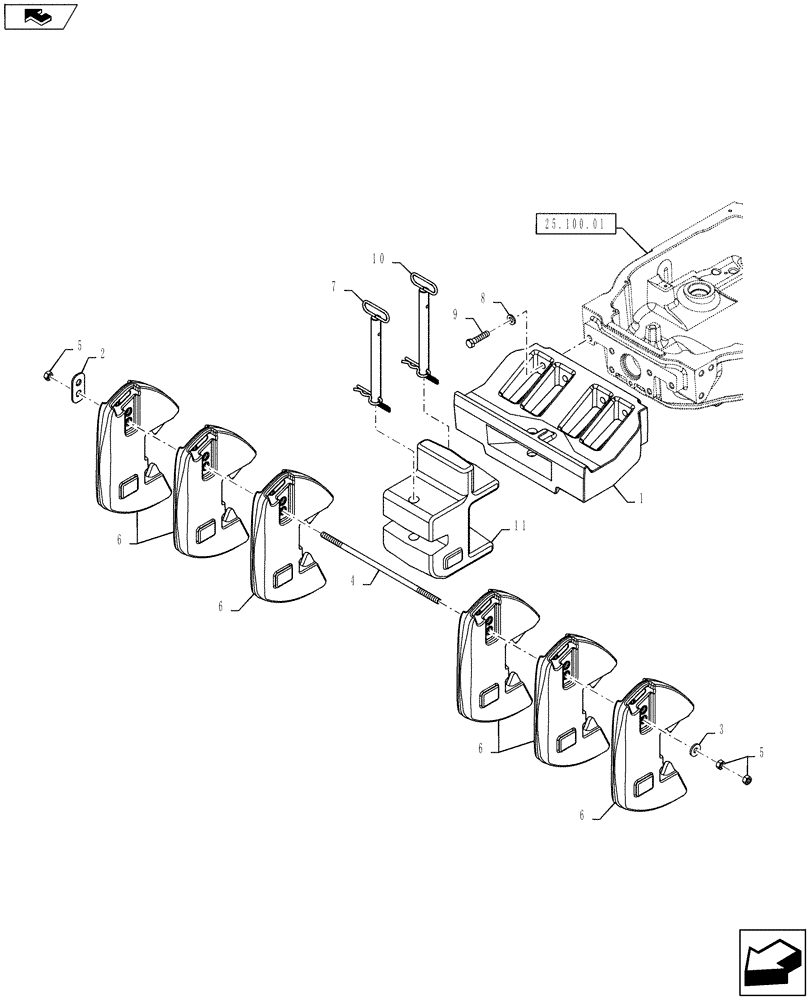

Запчасти Case IH PUMA 130 (39.140.04) - VAR - 743704, 330224 - FRONT WEIGHT CARRIER AND 6 WEIGHTS WITH PULL HOOK (39) - FRAMES AND BALLASTING

1

86988727

WEIGHT,45Kg

6шт.

2

44995007

CLAMP,Grey

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

1шт.

4

82028019

ROD,M16 x 2 x 610.00mm, ZND

1шт.

5

82011968

NUT,Hex, M16, 2mm Pitch, 13.00mm High, ZND

3шт.

6

82031499

WEIGHT CARRIER

1шт.

7

44995008

CLEVIS PIN,31mm OD x 337mm L

1шт.

8

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

9

412346

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

6шт.

10

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

11

82024272

SUPPORT,110Kg

1шт.
