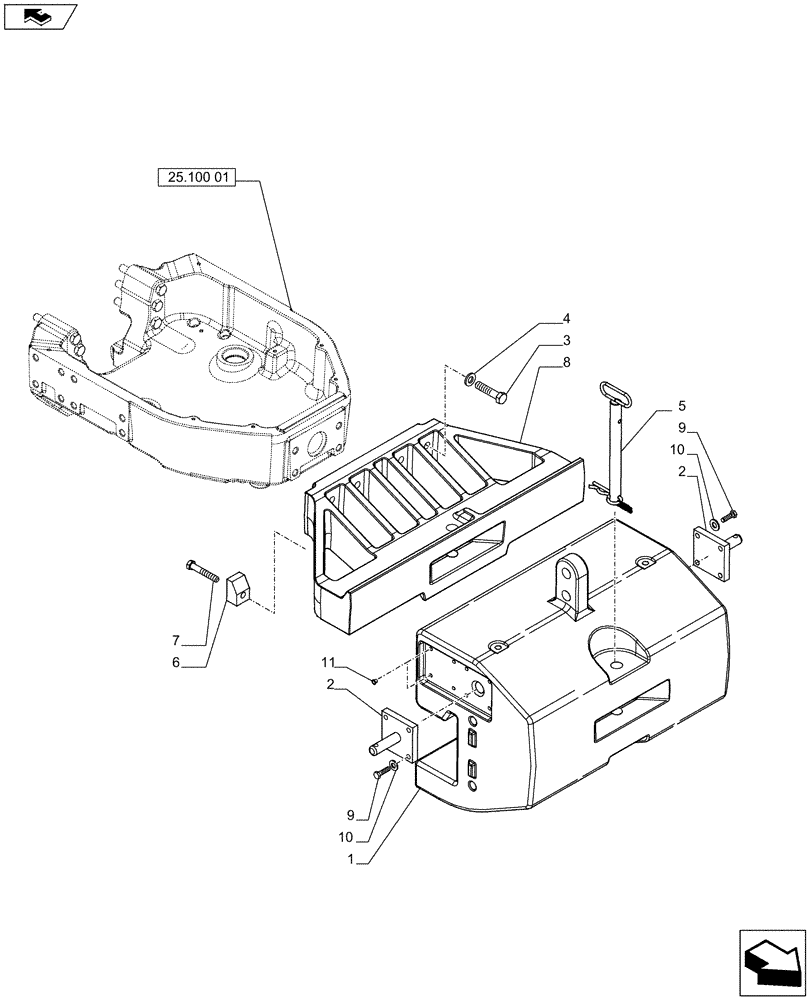

Запчасти Case IH PUMA 130 (39.140.03[01A]) - VAR - 330217, 743703, 330228, 743705 - FRONT WEIGHT CARRIER AND 3 LARGE WEIGHTS WITH PULL HOOK - D7196 (39) - FRAMES AND BALLASTING

1

84551478

WEIGHT,1000kg

1шт.

2

87301897

HEADED PIN,28mm OD x 120mm L

2шт.

3

16050821

BOLT,Hex, M20 x 90mm, Cl 8.8

6шт.

4

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

5

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

6

87376911

CLAMP,0.932 Kg

2шт.

7

11119921

SCREW,Hex, M16 x 100mm, Cl 8.8

2шт.

8

82031491

WEIGHT CARRIER

VAR 330217

1шт.

9

11113021

BOLT,Hex, M12 x 45mm, Cl 8.8

8шт.

10

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

8шт.

11

85700893

COVER

8шт.
