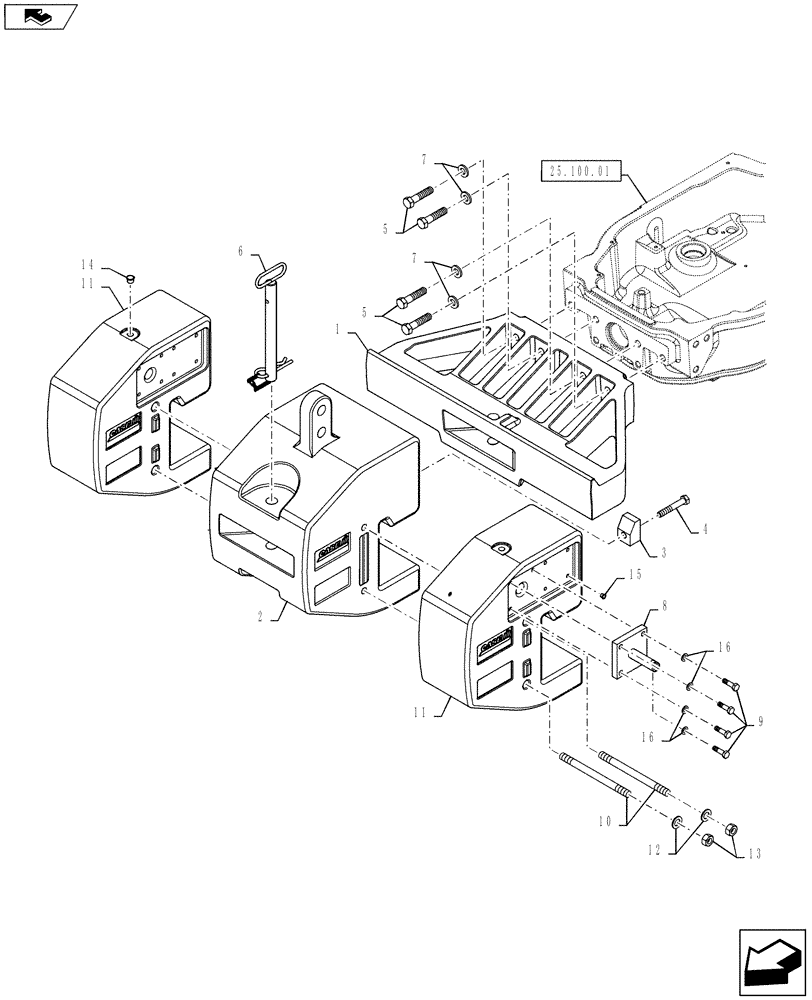

Запчасти Case IH PUMA 130 (39.140.03[01]) - VAR - 330217, 743703, 330228, 743705 - FRONT WEIGHT CARRIER AND 3 LARGE WEIGHTS WITH PULL HOOK - C7196 (39) - FRAMES AND BALLASTING

1

82031491

WEIGHT CARRIER

VAR 330217

1шт.

2

87376053

WEIGHT

VAR 330228

1шт.

3

87376911

CLAMP,0.932 Kg

2шт.

4

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

5

412346

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

6шт.

6

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

7

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

8

87301897

HEADED PIN,28mm OD x 120mm L

2шт.

9

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

8шт.

10

87377164

STUD,M20 x 2.5 x 270.00mm, Cl 8.8, ZND

4шт.

11

87376051

WEIGHT

VAR 330228

2шт.

12

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

13

12163527

NUT,Hex, M20, 2.5mm Pitch, BZN

4шт.

14

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

2шт.

15

85700893

COVER

8шт.

16

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

8шт.
