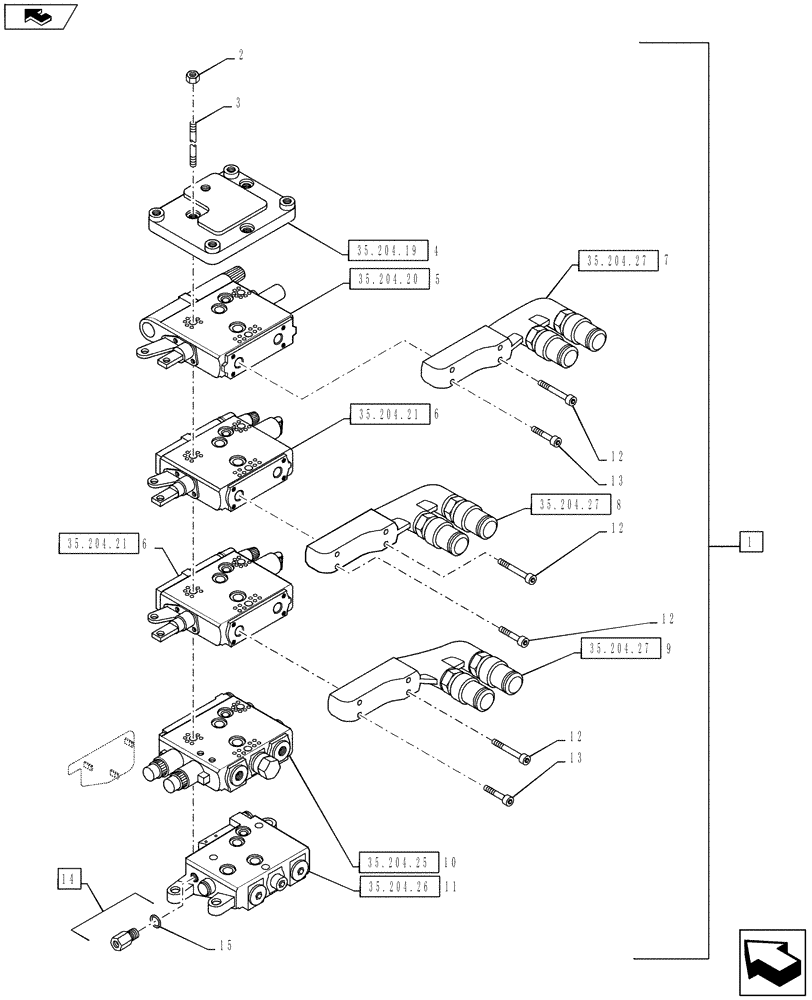

Запчасти Case IH PUMA 130 (35.204.02) - VAR - 396844 - MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS & QUICK COUPLERS - 3 VALVE (35) - HYDRAULIC SYSTEMS

1

84143958

CONTROL VALVE

Incl 2 - 15

1шт.

2

5195169

NUT,M8

3шт.

3

47123183

STUD,M8

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

1шт.

5

87546169R

REMAN-HYD VALVE

1шт.

5

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

87328572

HYD VALVE SECTION

2шт.

6

87328572R

REMAN-HYD VALVE

2шт.

6

87328572C

CORE-VALVE HYD

Return Number

2шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

84175671

VALVE SECTION

1шт.

10

84175671R

REMAN-HYD VALVE

1шт.

10

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

84142195

HYD VALVE SECTION

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191704

CHECK VALVE

Incl 15

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
