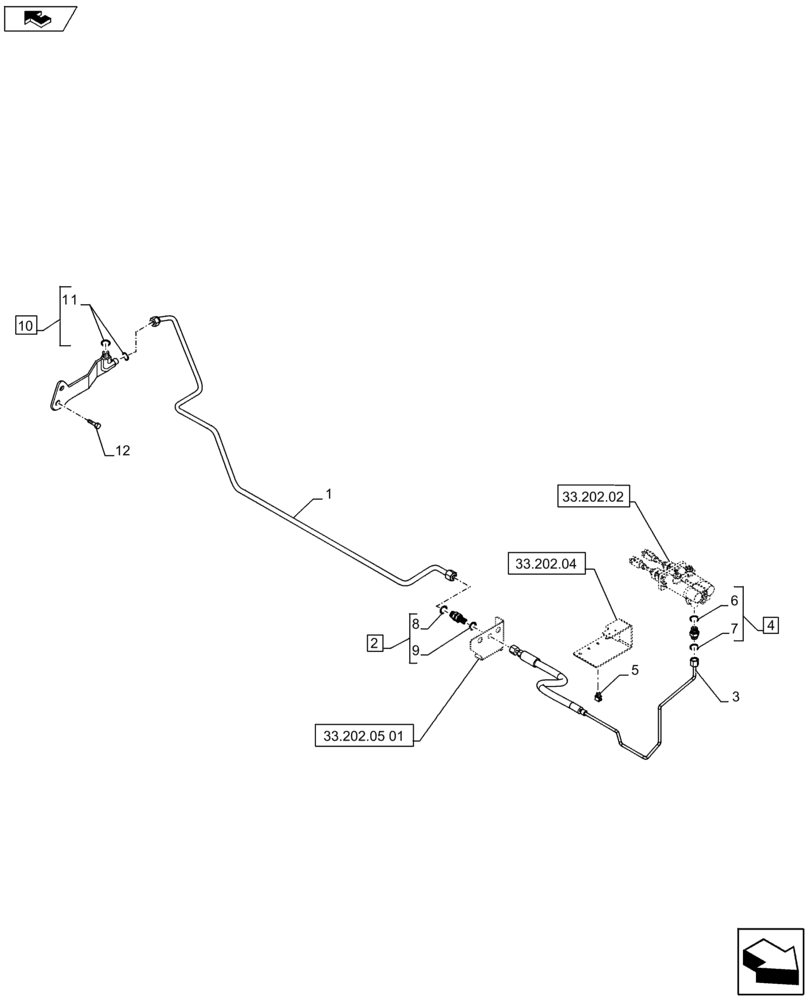

Запчасти Case IH PUMA 130 (33.224.13[01]) - VAR - 330720 - TRAILER BRAKE LINES - BRAKE LOGIC VALVE - C7113 (33) - BRAKES & CONTROLS

1

84140145

PRESSURE PIPE

Pilot

1шт.

2

87711901

HYD CONNECTOR

Incl 8, 9

1шт.

3

87702755

TUBE

M18 x 1.5

1шт.

4

87705105

HYD CONNECTOR

Incl 6, 7

1шт.

5

87710266

CLIP,6mm

1шт.

6

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

7

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

8

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

9

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

10

84140227

BRACKET

Incl 11

1шт.

11

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

12

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.
