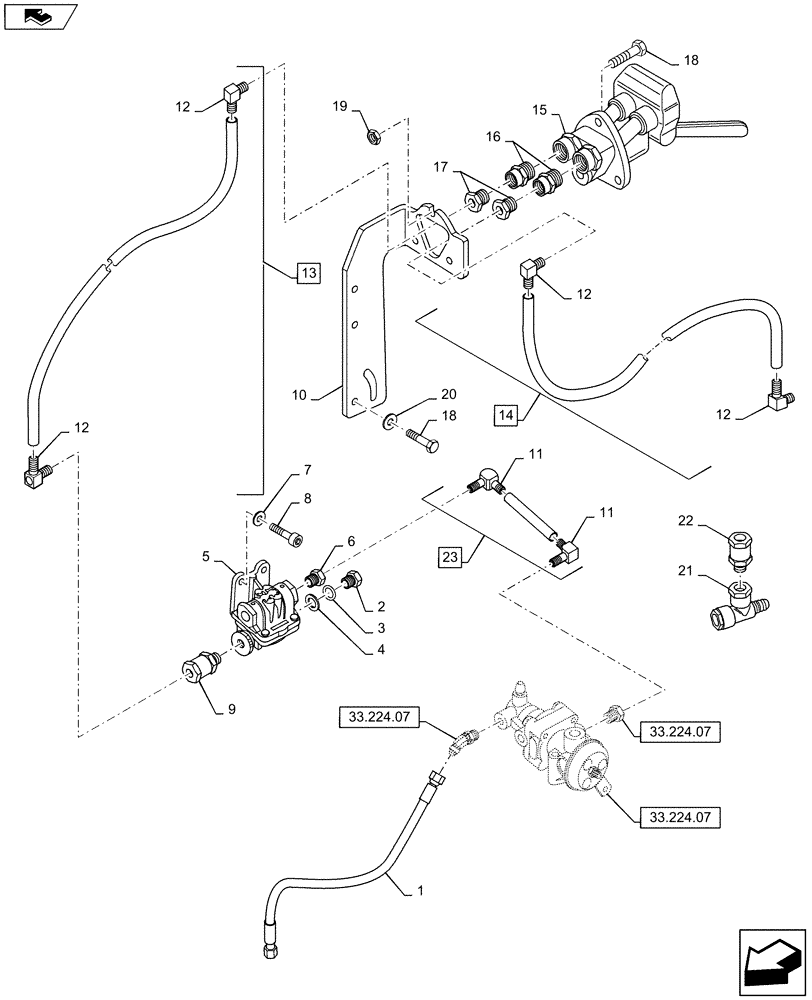

Запчасти Case IH PUMA 130 (33.224.11) - VAR - 332737, 743693 - PNEUMATIC TRAILER BRAKE (ITALY) - QUICK HITCH AND PIPES (33) - BRAKES & CONTROLS

1

84149763

HYDRAULIC HOSE,425.00mm

Advance

1шт.

2

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

3

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

4

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

5

84157669

VALVE

1шт.

6

87588079

HYD CONNECTOR,M16 x 1.5

1шт.

7

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

8

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

2шт.

10

87666026

BRACKET

1шт.

11

87588080

90 ELBOW,NG8 x 12mm D

3шт.

12

82038479

90 ELBOW,NG12 x 12mm D

4шт.

13

87628564

HOSE,12.00mm OD x 1200.00mm

Yellow, Incl 12

1шт.

14

87628562

HOSE,12.00mm OD x 1260.00mm

Red, Incl 12

1шт.

15

87692947

PUSH-PULL COUPLING

1шт.

16

87679177

ADAPTER

2шт.

17

82034157

ADAPTER

2шт.

18

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

5шт.

19

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

20

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

21

84185248

HYD CONNECTOR

1шт.

22

87741618

COUPLING

2шт.

23

84157672

FLEXIBLE HOSE,12.00mm OD x 123.00mm

Incl 11

1шт.
