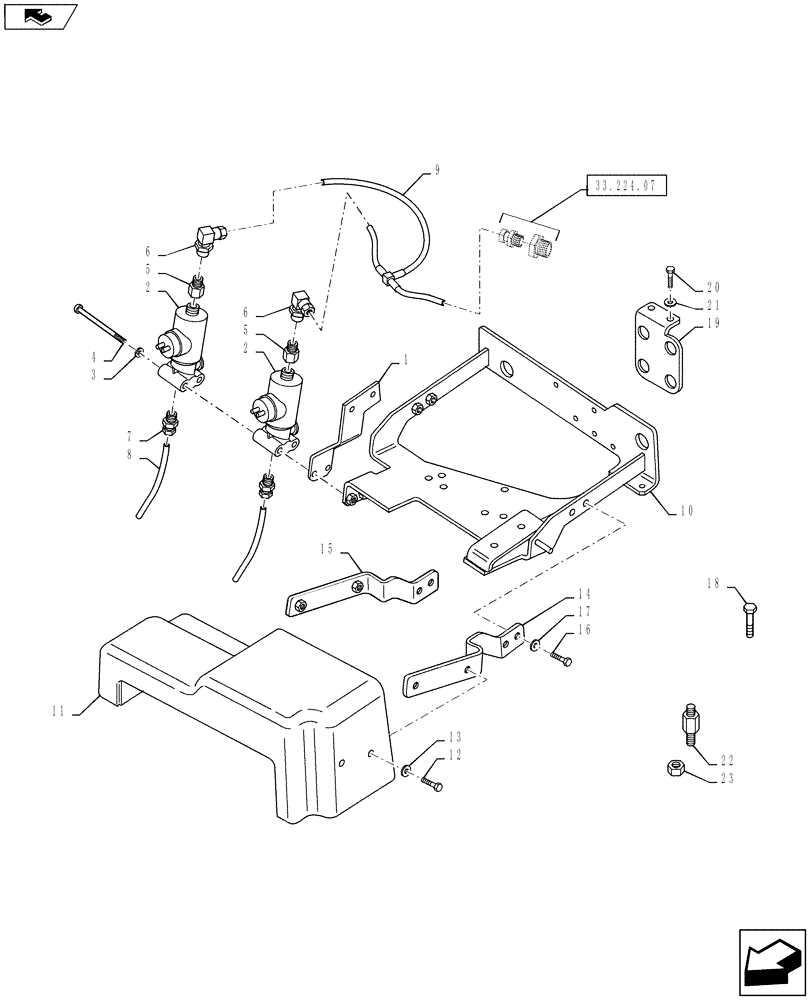

Запчасти Case IH PUMA 130 (33.224.08) - VAR - 332727, 743692, 332737, 743693, 332739, 743694 - PNEUMATIC TRAILER BRAKE - CONTROL VALVE AND RELEVANT PARTS (33) - BRAKES & CONTROLS

1

84233091

SUPPORT

1шт.

2

84359255

SOLENOID VALVE,1.41A, 12 VDC,

Pneumatic

2шт.

3

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

4

14302124

HEX SOC SCREW,M8 x 1.25 x 100mm, Cl 8.8

2шт.

5

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

6

87678122

HYD CONNECTOR,M10 x 1

2шт.

7

82006828

ADAPTER

2шт.

8

82019793

HOSE,6.00mm OD x 70.00mm

2шт.

9

84358408

FLEXIBLE HOSE

1шт.

10

84359006

SUPPORT

Italy and UK, VAR. 743692, 332737 - 743694, 332739

1шт.

10

84360052

SUPPORT

Universal, VAR. 743692, 332727

1шт.

11

84149758

COVER

1шт.

12

86624996

BOLT,Hex Flange, M6 x 16.00mm, Cl 8.8, BZN

4шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

14

84174772

SUPPORT

LH

1шт.

15

84174774

SUPPORT

RH

1шт.

16

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

17

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

19

84124500

BRACKET

1шт.

20

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

2шт.

21

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

22

84389143

SPACER

Universal, VAR. 743693, 332727

4шт.

23

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

Universal, VAR. 743692, 332727

4шт.
