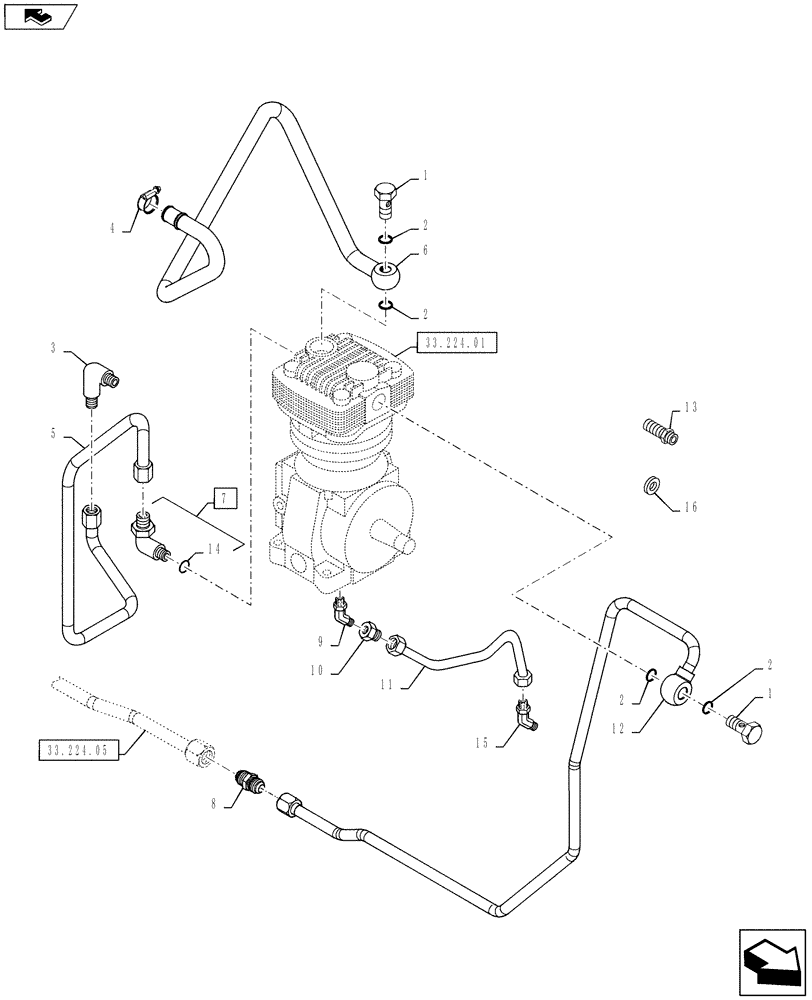

Запчасти Case IH PUMA 130 (33.224.03) - VAR - 332727, 743692, 332737, 743693, 332739, 743694 - PNEUMATIC TRAILER BRAKE - LINES (33) - BRAKES & CONTROLS

1

82031550

BANJO BOLT,M26 x 1.50

2шт.

2

82031552

COPPER WASHER,26.1mm ID x 32mm OD x 1.5mm Thk

4шт.

3

86512933

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

1шт.

4

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

1шт.

5

87802677

TUBE,6.0mm OD x 137.00mm, 50.00mm L

Lube Oil Supply

1шт.

6

84404553

BRAKE LINE

Compressor

1шт.

7

82002502

90 ELBOW,7/16"-20 x M10 x 1

Incl 14

1шт.

8

82024503

HYD CONNECTOR,7/8"-14 x 7/8"-14

1шт.

9

87802837

ELBOW,45 Deg, 7/8-14 x M22 x 1.5 ORB

1шт.

10

87656032

ADAPTER

1шт.

11

87656030

RIGID TUBE,16.00mm OD x 139.10mm L

Compressor, Oil Drain

1шт.

12

87702807

RIGID TUBE,16.00mm OD x 998.50mm, 100.00mm L

Air Brakes

1шт.

13

87802702

HYD CONNECTOR

1шт.

14

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

15

82003206

ELBOW,90 Deg, 7/8-14 x M22 x 1.5 ORB

1шт.

16

81806277

SEAL,20.83mm ID x 31.75mm OD x 8.13mm Thk

SEALRING

1шт.
