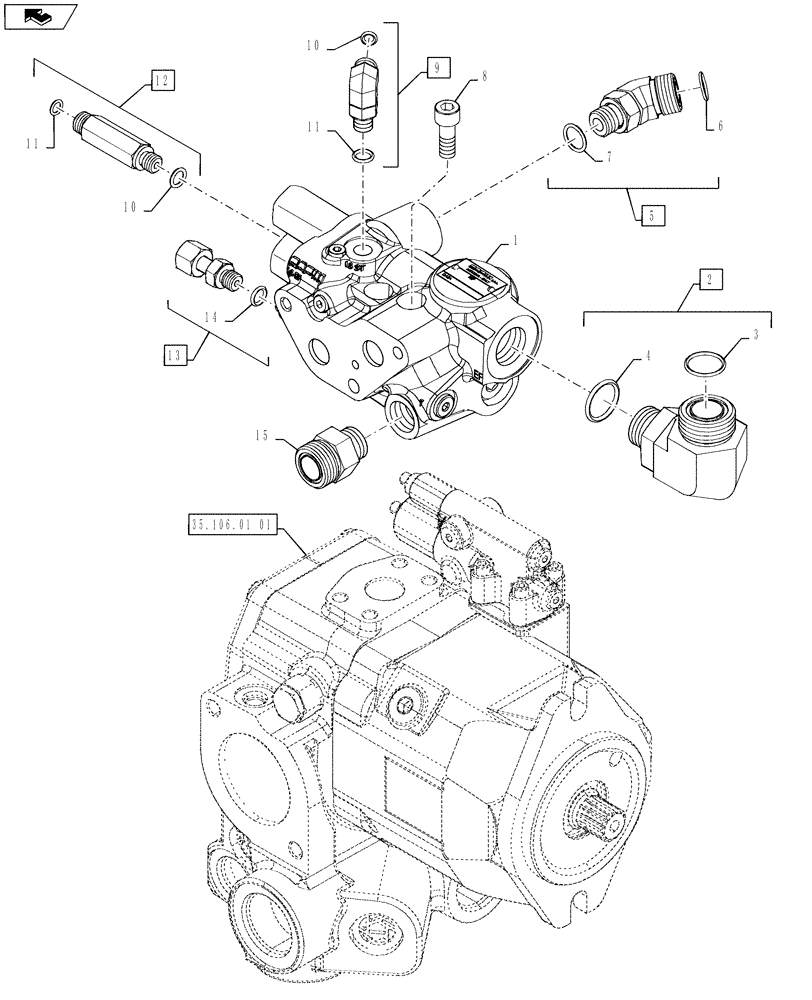

Запчасти Case IH PUMA 130 (33.220.03) - VAR - 330718, 331723 - HYDRAULIC TRAILER BRAKE - PRIORITY VALVE - D7113 (33) - BRAKES & CONTROLS

1

84141056

CONTROL VALVE

Priority

1шт.

2

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

Incl 3, 4

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

4

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

5

84270256

FITTING

Incl 6, 7

1шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

9

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

Incl 10, 11

1шт.

10

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

84270265

FITTING,M12 x 1.5 x 9/16"-18

Incl 10, 11

1шт.

13

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

Incl 14

1шт.

14

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

15

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

1шт.
