Запчасти Case IH PUMA 130 (33.220.02[01A]) - VAR - 331723, 743691 - HYDRAULIC TRAILER BRAKE (ITALY) - BRAKE VALVE & LINES - D7113 (33) - BRAKES & CONTROLS

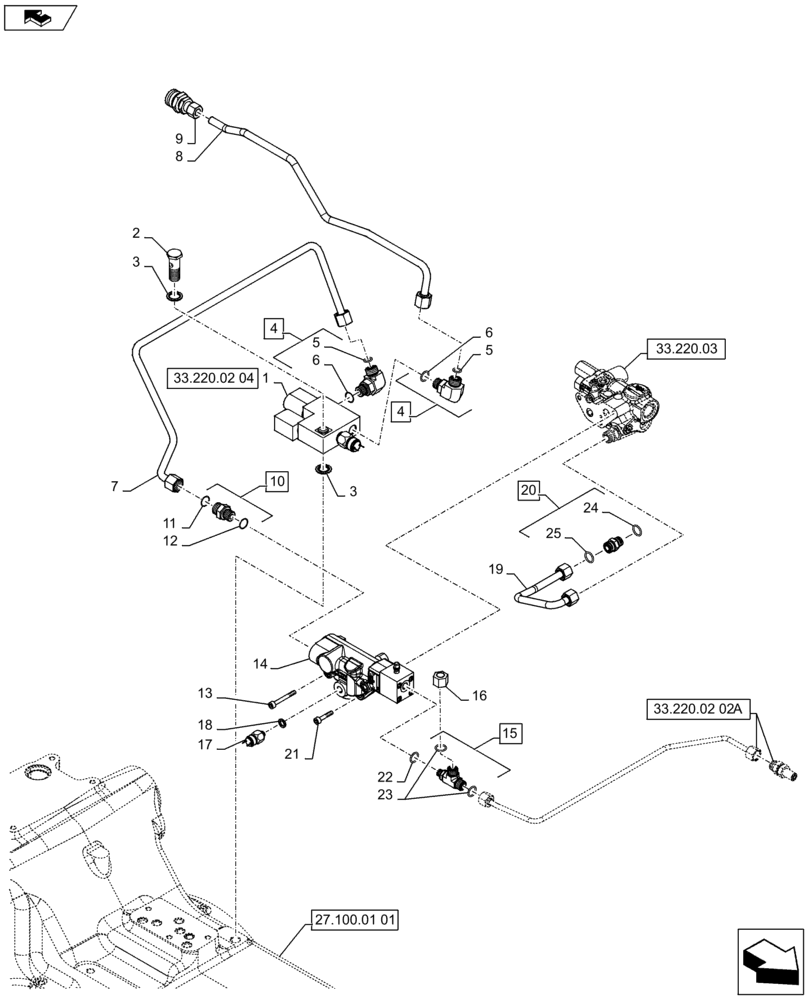

Схема запчастей Case IH PUMA 130 - (33.220.02[01A]) - VAR - 331723, 743691 - HYDRAULIC TRAILER BRAKE (ITALY) - BRAKE VALVE & LINES - D7113 (33) - BRAKES & CONTROLS
6
11
27.100.01 01
19
6
14
2
4
18
9
16
5
15
23
7
24
20
5
1
3
33.220.02 04
25
12
22
17
3
33.220.03
8
10
21
4
13
33.220.02 02a

Артикул

Название

Примечание

Количество

1

5196175

BRAKE VALVE

1шт.

2

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

3

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

4

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 5, 6

2шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

84344229

PRESSURE PIPE

1шт.

8

84281830

PRESSURE PIPE

1шт.

9

5144514

HYDRAULIC VALVE

1шт.

10

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 11, 12

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

13

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

14

84349101

BRAKE VALVE

1шт.

15

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

Incl 22, 23

1шт.

16

9625546

CAP,11/16" - 16 ORFS

1шт.

17

87604423

SWITCH ASSY

10 Bar

1шт.

18

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

19

84372459

HYD TUBE

1шт.

20

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 24, 25

1шт.

21

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

1шт.

22

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

23

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

25

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 25
