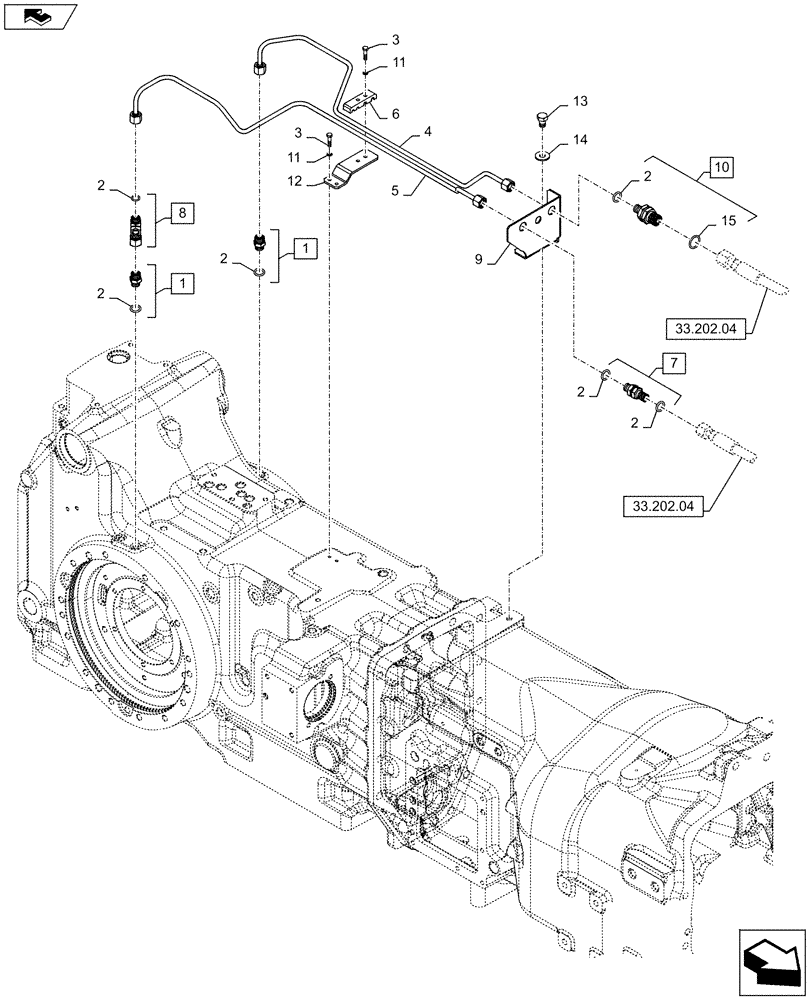

Запчасти Case IH PUMA 130 (33.202.05[01]) - BRAKE LINES - C7113 (33) - BRAKES & CONTROLS

1

47131549

FITTING,M12 x 1.5

Incl 2

2шт.

2

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

6шт.

3

10902524

SCREW,Hex, M6 x 22mm, Cl 8.8

4шт.

4

84140143

BRAKE LINE

RH

1шт.

5

87733771

BRAKE LINE

LH

1шт.

6

87733806

CLAMP BRACKET

1шт.

7

47136517

HYD CONNECTOR,ORFS 11/16"-16

Incl 2

1шт.

8

87681989

HYD CONNECTOR,11/16"-16 x M12 x 1 x 11/16"-16

Incl 2

1шт.

9

87733804

SUPPORT

1шт.

10

87711900

HYD CONNECTOR

Incl 2, 15

1шт.

11

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

12

87733807

SUPPORT

1шт.

13

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

14

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.
