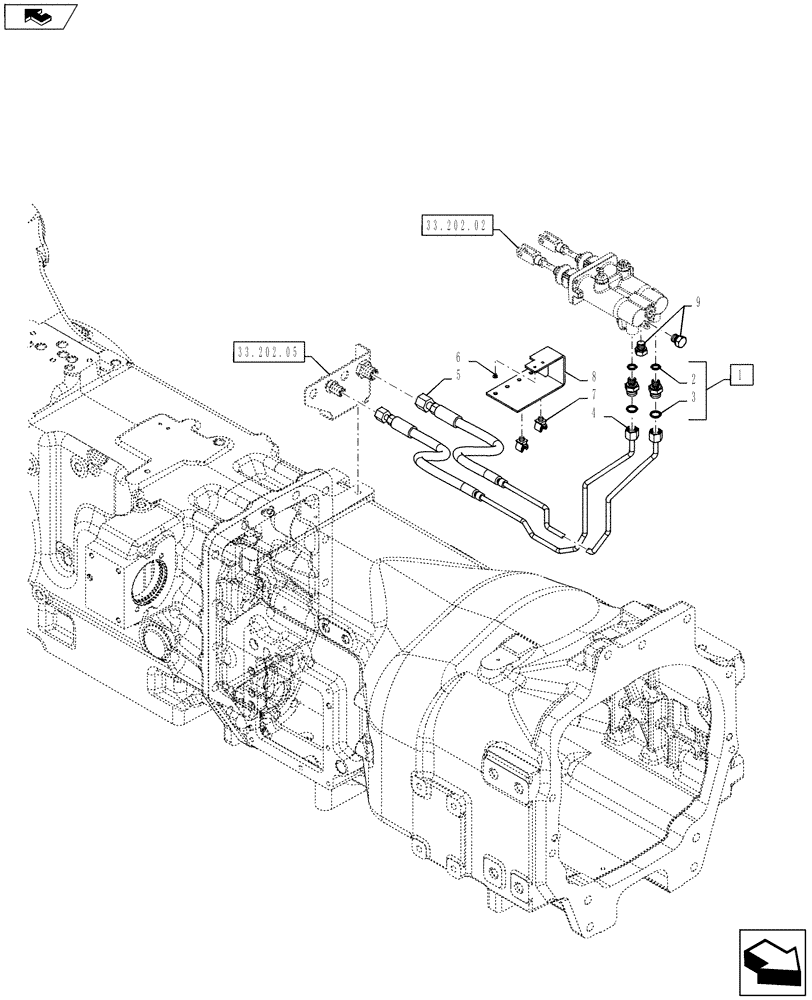

Запчасти Case IH PUMA 130 (33.202.04) - BRAKE LINES (33) - BRAKES & CONTROLS

1

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

Incl 2, 3

2шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

4

87702753

TUBE

RH, Serial Range: -C7113

1шт.

4

84354946

BRAKE LINE

RH, Start Serial: D7113

1шт.

5

87702754

TUBE

LH, Serial Range: -C7113

1шт.

5

84354947

BRAKE LINE

LH, Start Serial: D7113

1шт.

6

14643294

RIVET

2шт.

7

87313304

CLIP

2шт.

8

87565907

SUPPORT

, Serial Range: -C7113

1шт.

8

84354950

SUPPORT

, Start Serial: D7113

1шт.

9

81864448

PLUG

2шт.
