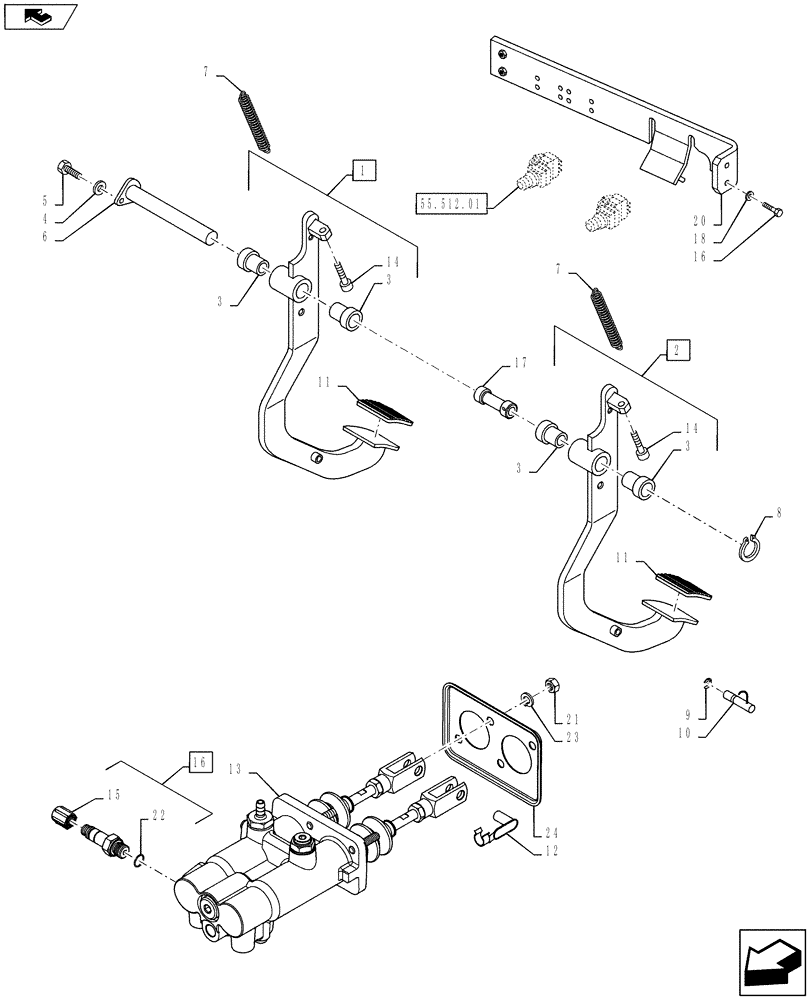

Запчасти Case IH PUMA 130 (33.202.02) - BRAKE PEDALS AND BRAKE MASTER CYLINDERS (33) - BRAKES & CONTROLS

1

87547098

PEDAL

RH, Incl 3, 11, 14

1шт.

2

87547097

PEDAL

LH, Incl 3, 11, 14

1шт.

3

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

4шт.

4

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

1шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

6

82022428

SHAFT,20mm ID x 25mm OD x 348mm L

1шт.

7

5153180

SPRING,21mm OD x 84mm L

2шт.

8

83937363

SNAP RING

1шт.

9

84209162

PIN,11.965mm OD x 70mm L

1шт.

10

11088180

CIRCLIP,M11, Stainless

1шт.

11

82025747

RUBBER PEDAL PAD

2шт.

12

87316560

PIN,10mm OD x 23mm L

2шт.

13

47136923

MASTER CYLINDER

, Serial Range: -C6993

1шт.

13

84349111

MASTER CYLINDER,36mm Stroke

, Start Serial: D6993

1шт.

14

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

2шт.

15

122553A1

CAP

1шт.

16

87639124

VALVE

Incl 15, 22

1шт.

17

87310426

SPACER,32mm ID x 38mm OD x 134mm L

1шт.

18

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

3шт.

19

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

20

84183613

SUPPORT

1шт.

21

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

22

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

23

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

24

87398313

BEZEL

1шт.
