(31.116.08) - VAR - 330938, 330940, 330942 - PTO SHAFT COVER - SLIDER TOW HOOK

Запчасти Case IH PUMA 130 (31.116.08) - VAR - 330938, 330940, 330942 - PTO SHAFT COVER - SLIDER TOW HOOK (31) - IMPLEMENT POWER TAKE OFF

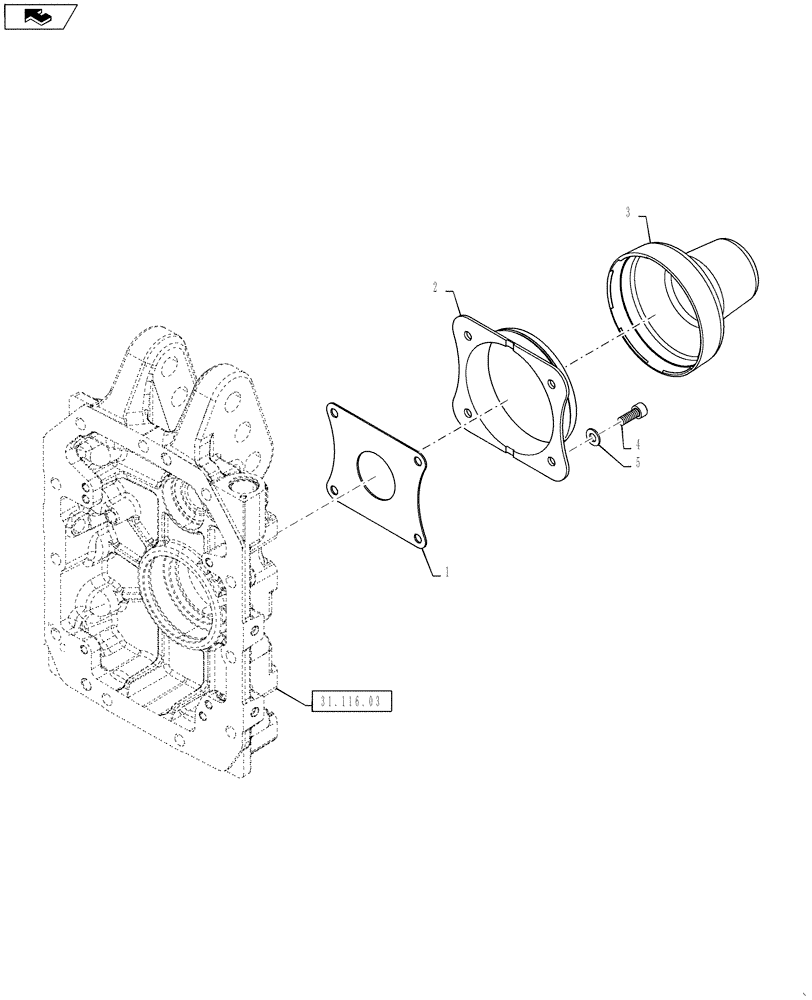

Схема запчастей Case IH PUMA 130 - (31.116.08) - VAR - 330938, 330940, 330942 - PTO SHAFT COVER - SLIDER TOW HOOK (31) - IMPLEMENT POWER TAKE OFF
5
3
4
2
1
31.116.03
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47131825

GUARD

1шт.

2

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

3

47125899

COVER,109mm L

1шт.

4

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

4шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.
