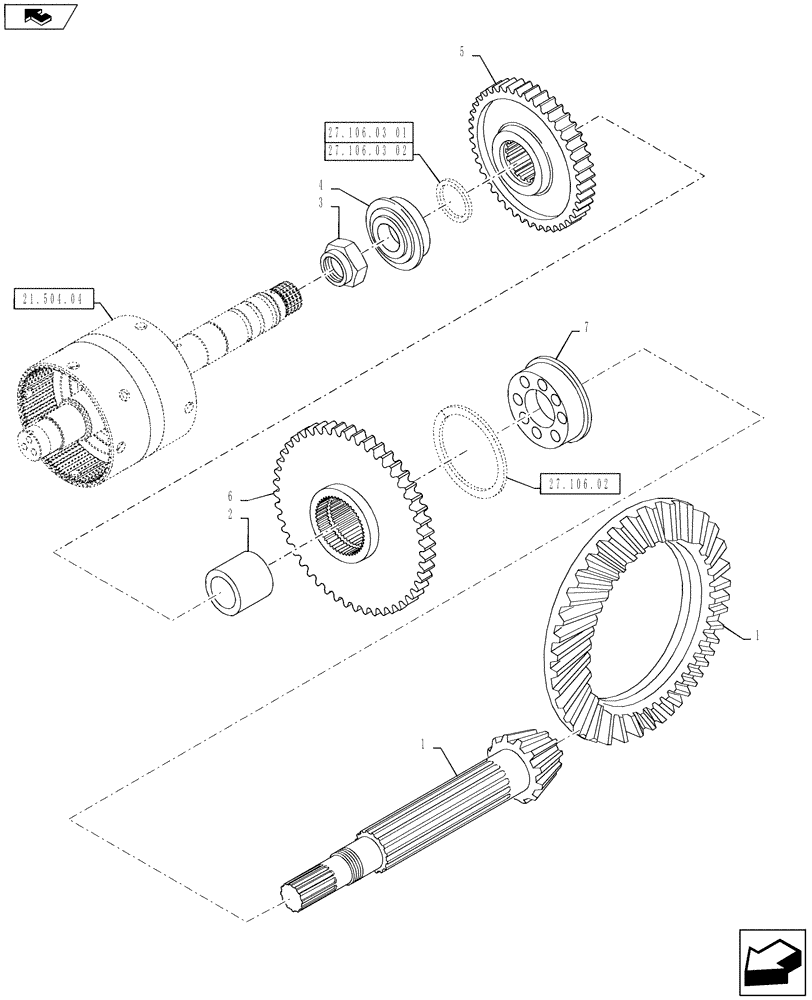

Запчасти Case IH PUMA 130 (27.106.01) - VAR - 390805 - CENTRAL REDUCTION GEAR - RING & PINION (27) - REAR AXLE SYSTEM

1

5162572

BEVEL GEAR,10/43 Ratio

Ratio 10/43, Puma 130, 145

1шт.

1

84275420

BEVEL GEAR,9/41 Ratio

Ratio 9/41, Puma 160

1шт.

2

5145129

SPACER,55mm ID x 70mm OD x 42.5mm L

1шт.

3

5147930

RING NUT,M45 x 1.5

1шт.

4

5138727

BEARING ASSY,45mm ID x 106mm OD x 27.25mm W

1шт.

5

5163666

DRIVING GEAR,Z43

Puma 130, 145

1шт.

5

87480904

GEAR,Z44

Puma 160

1шт.

6

5183202

GEAR,Z47

1шт.

7

5111271

ROLLER BEARING,60mm ID x 125mm OD x 37mm W

1шт.
