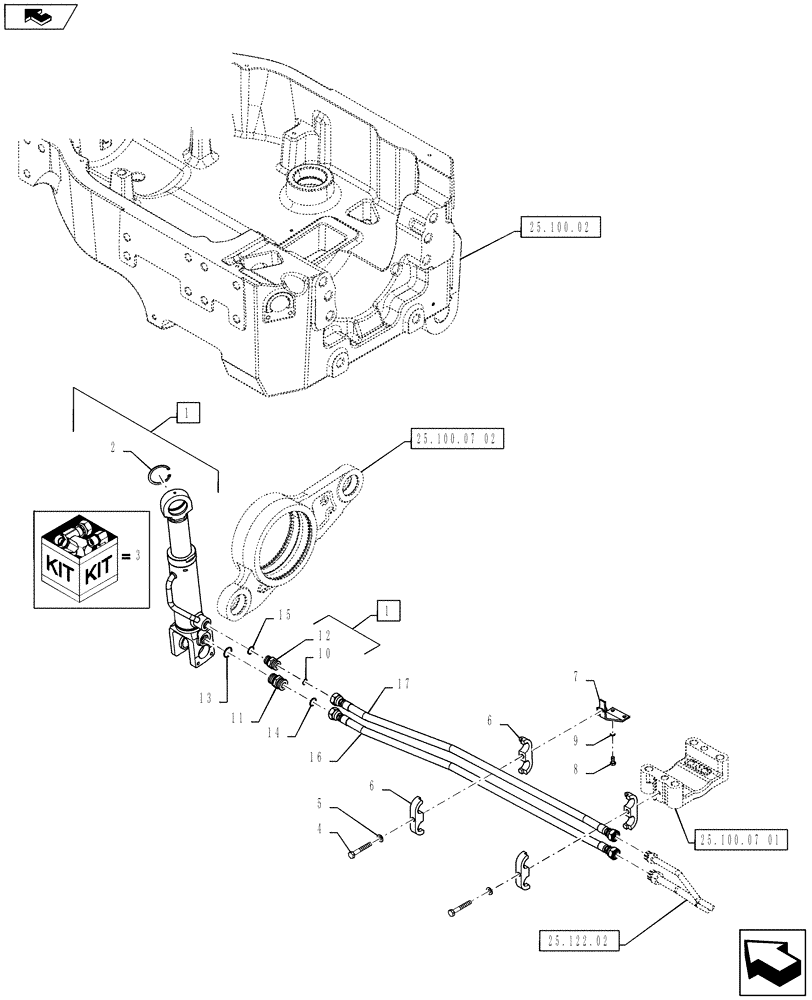

Запчасти Case IH PUMA 130 (25.122.01) - VAR - 330414, 330427, 330429, 330430 - SUSPENDED FRONT AXLE - HYDRAULIC CYLINDER & LINES (25) - FRONT AXLE SYSTEM

1

87664861

CYLINDER,Double Acting, 55mm Rod, 152mm Stroke

Incl 2, 3, 10, 11, 12

1шт.

2

11061076

SNAP RING,M62, Int

1шт.

3

87316817

SEAL KIT

1шт.

4

11107621

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

6

82022172

CLAMP,2 Hoses

4шт.

7

82033192

BRACKET

1шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

83963081

LOCK WASHER,Serr, 8.20mm ID x 14mm OD

2шт.

10

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

82019639

HYD CONNECTOR

Incl 13, 14

1шт.

12

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

Incl 10, 15

1шт.

13

82019813

SEAL,23.9mm ID x 29.2mm OD x 1.5mm Thk

1шт.

14

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

16

87545821

HOSE ASSY.,19.10mm ID x 1041.00mm, SAE 100R16

Raise, Piston

1шт.

17

87545822

HOSE ASSY.,12.70mm ID x 1013.00mm, SAE 100R16

Lower, Rod

1шт.
