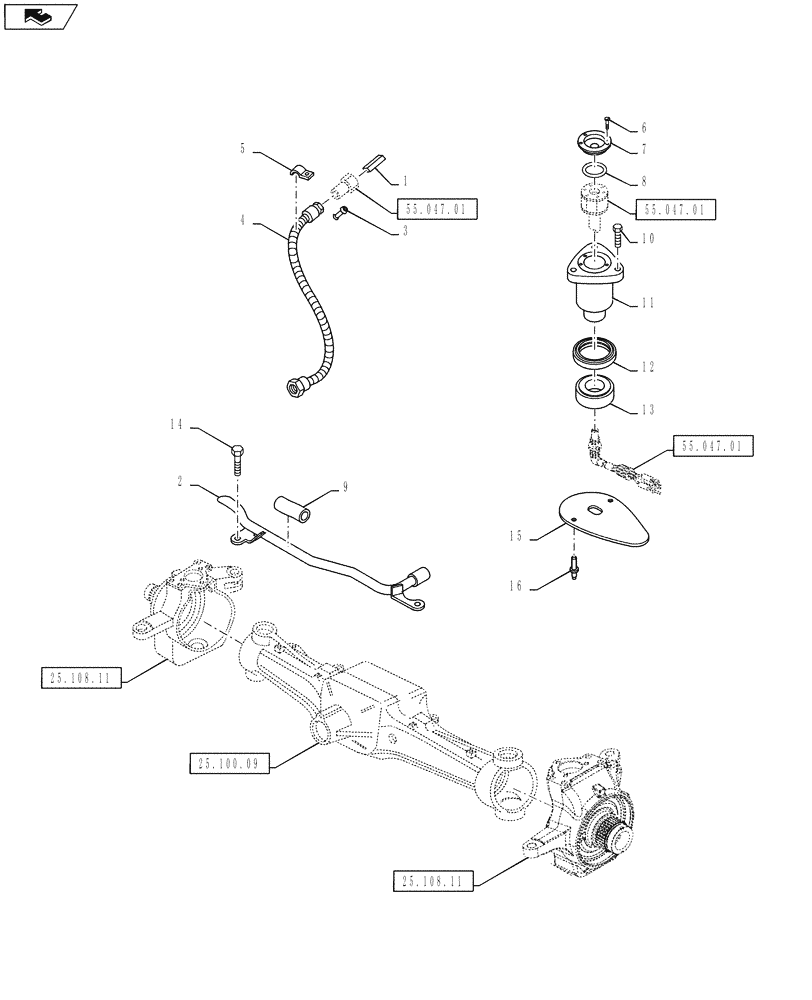

Запчасти Case IH PUMA 130 (25.108.13) - VAR - 330408, 330429, 330430 - CL.4 FRONT AXLE - STEERING SENSOR (25) - FRONT AXLE SYSTEM

1

82918451

SPACER

1шт.

2

87588344

TUBE,12.00mm OD x 380.40, 49.00mm

for Male Connector Protection VAR 330408 and STD For Puma 160

1шт.

2

87717195

TUBE,12.00mm OD x 354.00, 77.00mm

for Male Connector Protection, Suspended Front Axle Var 330429, 330430

1шт.

3

82918419

PLUG

1шт.

4

82016109

FLEXIBLE SHEATH

1шт.

5

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

6

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

7

84384510

TOP

1шт.

8

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

9

87329095

HOSE PROTECTION

Thermo Reduction

1шт.

10

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

11

87382577

BALL STUD

1шт.

12

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

13

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

14

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

15

87315098

SHIELD

1шт.

16

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.
