Запчасти Case IH PUMA 130 (25.102.07) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - RING & PINION ADJUSTING SHIMS (25) - FRONT AXLE SYSTEM

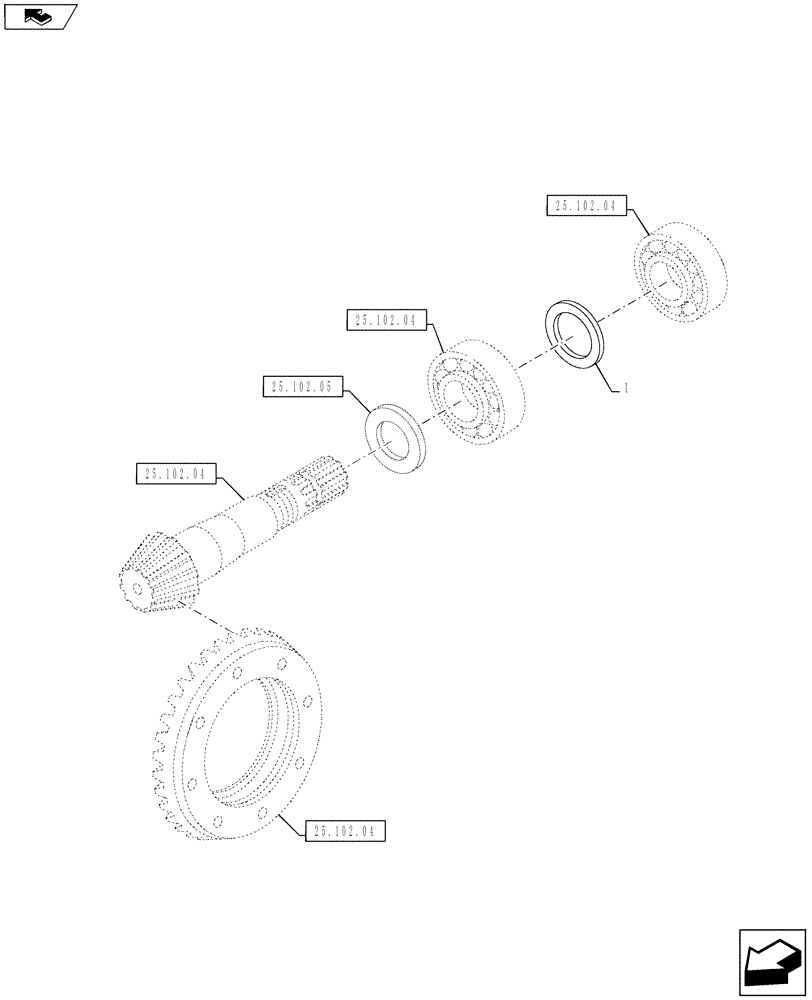

Схема запчастей Case IH PUMA 130 - (25.102.07) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - RING & PINION ADJUSTING SHIMS (25) - FRONT AXLE SYSTEM
1
home
25.102.04
25.102.04
25.102.04
25.102.05
25.102.04

Артикул

Название

Примечание

Количество

1

5169287

SHIM,41.7mm ID x 48mm OD x 2.2mm Thk

1шт.

1

5169288

SHIM,41.7mm ID x 48mm OD x 2.25mm Thk

1шт.

1

5169289

SHIM,41.7mm ID x 48mm OD x 2.3mm Thk

1шт.

1

5169290

SHIM,41.7mm ID x 48mm OD x 2.35mm Thk

1шт.

1

5169291

SHIM,41.7mm ID x 48mm OD x 2.4mm Thk

1шт.

1

5169292

SHIM,41.7mm ID x 48mm OD x 2.45mm Thk

1шт.

1

5169293

SHIM,41.7mm ID x 48mm OD x 2.5mm Thk

1шт.

1

5169294

SHIM,41.7mm ID x 48mm OD x 2.55mm Thk

1шт.

1

5169295

SHIM,41.7mm ID x 48mm OD x 2.6mm Thk

1шт.

1

5169296

SHIM,41.7mm ID x 48mm OD x 2.65mm Thk

1шт.

1

5169297

SHIM,41.7mm ID x 48mm OD x 2.7mm Thk

1шт.

1

5169298

SHIM,41.7mm ID x 48mm OD x 2.75mm Thk

1шт.

1

5169299

SHIM,41.7mm ID x 48mm OD x 2.8mm Thk

1шт.

1

5169300

SHIM,41.7mm ID x 48mm OD x 2.85mm Thk

1шт.

1

5169301

SHIM,41.7mm ID x 48mm OD x 2.9mm Thk

1шт.

1

5169302

SHIM,41.7mm ID x 48mm OD x 2.95mm Thk

1шт.

1

5169303

SHIM,41.7mm ID x 48mm OD x 3mm Thk

1шт.

1

5169304

SHIM,41.7mm ID x 48mm OD x 3.05mm Thk

1шт.

1

5169305

SHIM,41.7mm ID x 48mm OD x 3.1mm Thk

1шт.

1

5169306

SHIM,41.7mm ID x 48mm OD x 3.15mm Thk

1шт.

1

5169307

SHIM,41.7mm ID x 48mm OD x 3.2mm Thk

1шт.

1

5169308

SHIM,41.7mm ID x 48mm OD x 3.25mm Thk

1шт.

1

5169309

SHIM,41.7mm ID x 48mm OD x 3.3mm Thk

1шт.

1

5169310

SHIM,41.7mm ID x 48mm OD x 3.35mm Thk

1шт.

1

5169311

SHIM,41.70mm ID x 48.00mm OD x 3.40mm T

1шт.

1

5169312

SHIM,41.7mm ID x 48mm OD x 3.45mm Thk

1шт.

Выбрано товаров: 26
