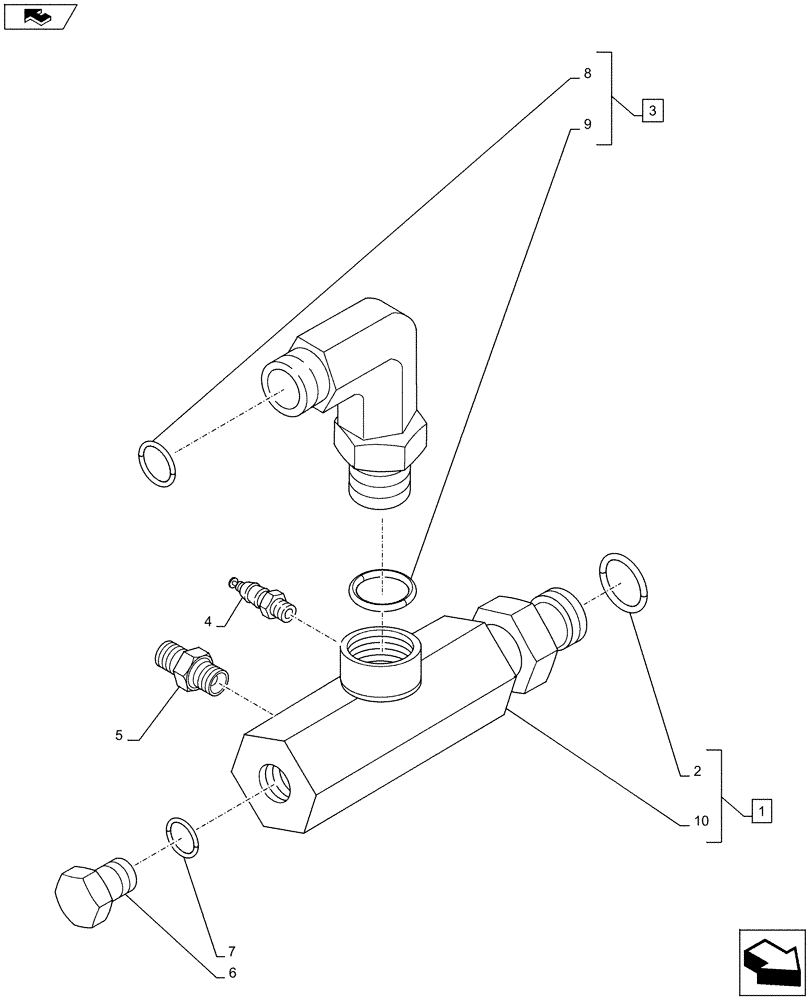

Запчасти Case IH PUMA 130 (21.102.04) - GEARBOX LUBRIFICATION - VALVE - C7113 (21) - TRANSMISSION

1

87653717

VALVE BODY

G Port, Incl 2, 10

1шт.

2

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

3

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 8, 9

1шт.

4

82028130

PRESSURE SWITCH

1шт.

5

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

6

47123781

PLUG,M22 x 1.5

1шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

9

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.
