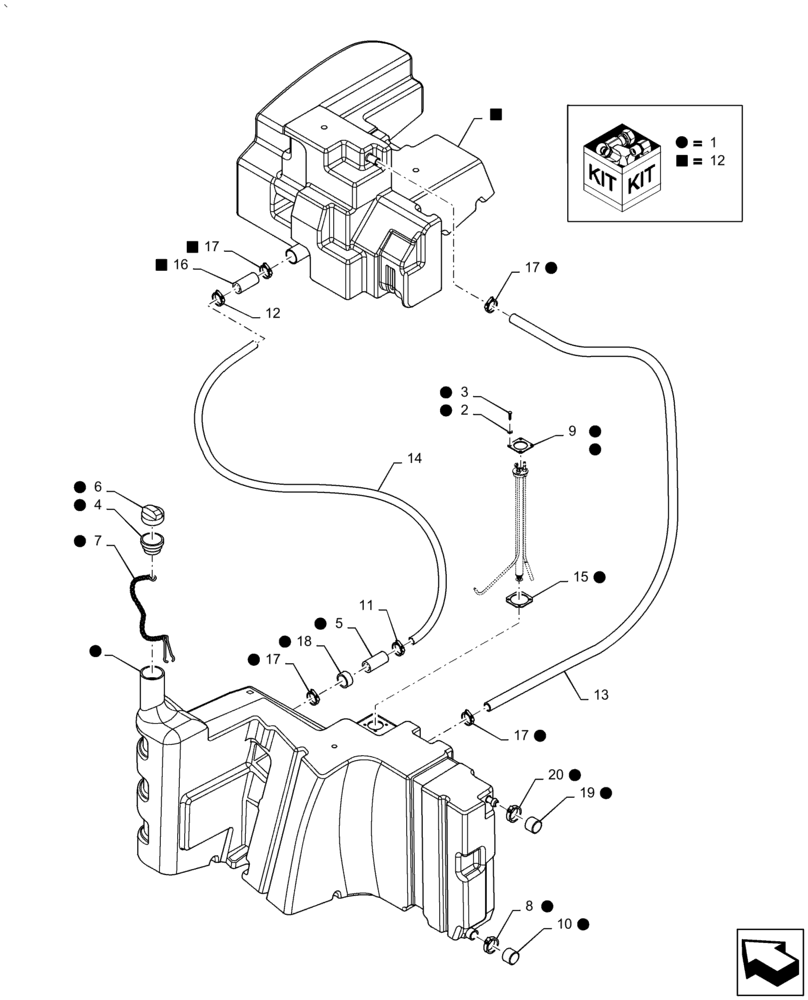

Запчасти Case IH PUMA2104 (10.216.AI[02]) - FUEL TANK (10) - ENGINE

1

47478581

FUEL TANK

Main, 300 Litres

1шт.

2

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

4

87554848

NECK FILLER

1шт.

5

87387657

TUBE

1шт.

6

82012210

FILLER CAP

Less Locking

1шт.

7

82012533

LINK CHAIN

1шт.

8

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

1шт.

9

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

10

83998666

CAP

1шт.

11

82039343

HOSE CLAMP,16mm - 27mm

2шт.

12

87546879

FUEL TANK

Auxilary, 110 Litres

1шт.

13

82034051

FUEL HOSE,15.90 mm ID x 770.00 mm

Breather Line

1шт.

14

87312660

TUBE,38, 48 mm OD x 483, 100 mm L

Main to Auxilary Line

1шт.

15

87341159

PLATE

1шт.

16

87387657

TUBE

1шт.

17

82036462

CLAMP,50mm - 70mm

4шт.

18

87587056

SLEEVE,38.5mm ID x 41.5mm OD x 40mm L

1шт.

19

83952371

CAP,15mm ID X 25mm

1шт.

20

82012719

CLAMP,15mm - 24mm, Worm Gear

1шт.
