(10.216.BA[02]) - ABS SYSTEM - FUEL LINE AND FILTER (VAR.743922)

Запчасти Case IH PUMA1854 (10.216.BA[02]) - ABS SYSTEM - FUEL LINE AND FILTER (VAR.743922) (10) - ENGINE

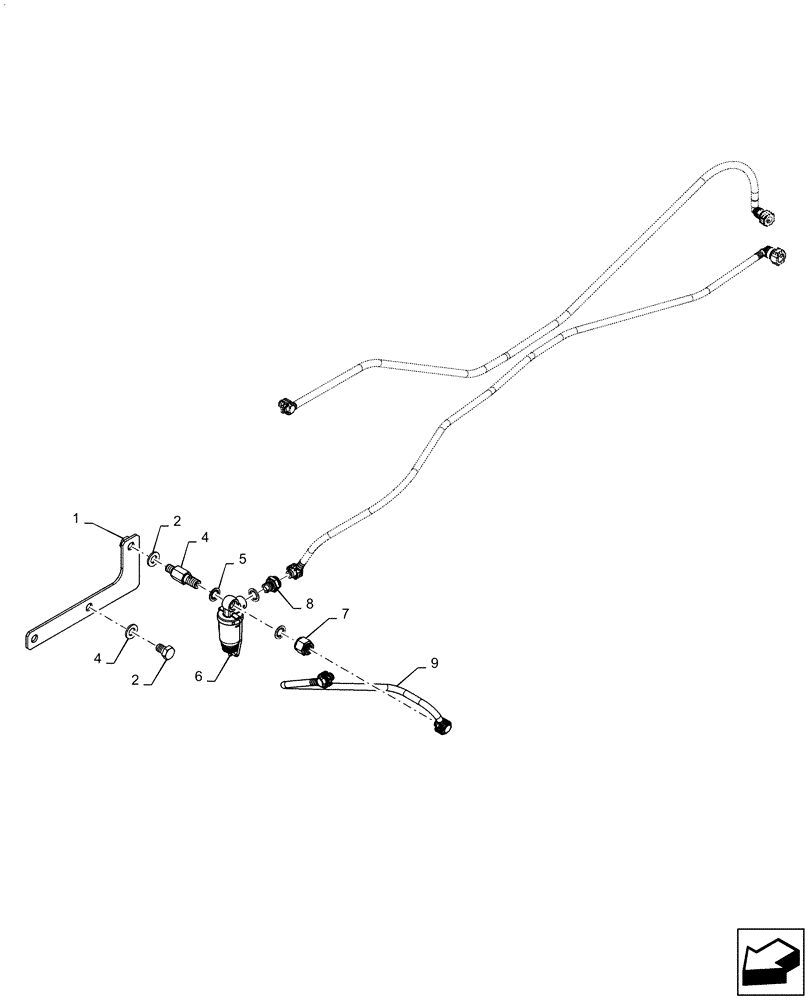

Схема запчастей Case IH PUMA1854 - (10.216.BA[02]) - ABS SYSTEM - FUEL LINE AND FILTER (VAR.743922) (10) - ENGINE
1
4
4
9
2
8
7
5
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87591419

HOLDER

1шт.

2

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

3

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

M12 x 20 mm

2шт.

4

87585662

HYD CONNECTOR,M12 x 1.75 x M14 x 1.5

1шт.

5

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

6

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

1шт.

7

87585673

HYD CONNECTOR

1шт.

8

4893833

HYD CONNECTOR

1шт.

9

84337769

FUEL TUBE

for T1804,PUMA1854

1шт.
