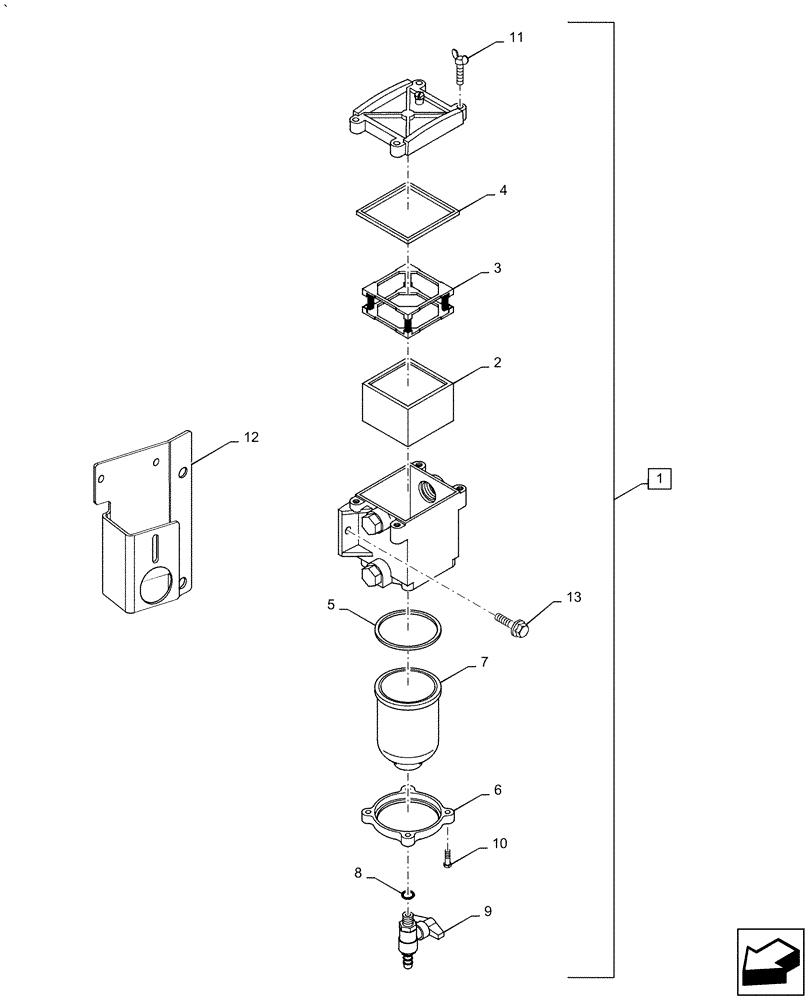

Запчасти Case IH PUMA1854 (10.206.AG[03]) - FUEL FILTER, SEPARATOR (10) - ENGINE

1

87346728

FUEL FILTER

Incl 2 - 13

1шт.

2

336430A1

FUEL FILTER

1шт.

3

336431A1

FRAME

1шт.

4

336432A1

GASKET

1шт.

5

336433A1

SEAL,70mm ID x 78mm OD x 3mm Thk

1шт.

6

369841A1

RETAINER

1шт.

7

369842A1

FILTER BOWL

1шт.

8

369843A1

O-RING,2.5mm Thk x 10.5mm ID

1шт.

9

369844A1

DRAINCOCK/TAP SUPPLY

1шт.

10

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

4шт.

11

87625617

THUMB SCREW

4шт.

12

47459541

SHIELD

1шт.

13

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.
