(90.105.BP) - MID-MOUNT CONTROL VALVE, COVER

Запчасти Case IH PUMA1854 (90.105.BP) - MID-MOUNT CONTROL VALVE, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

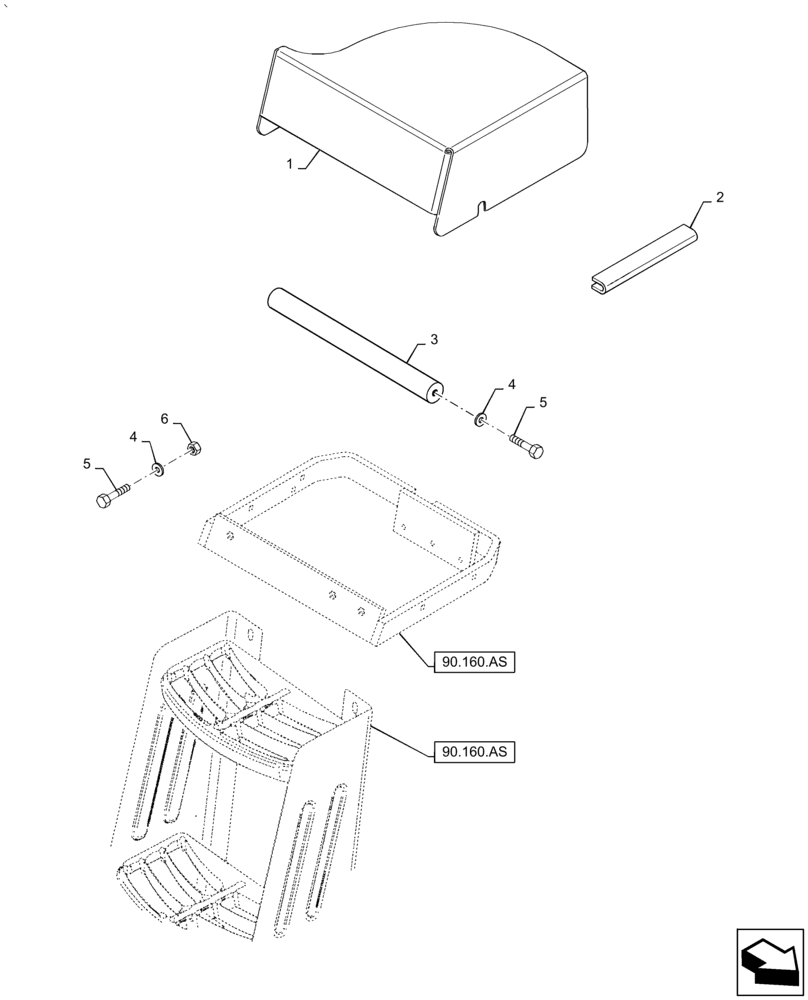

Схема запчастей Case IH PUMA1854 - (90.105.BP) - MID-MOUNT CONTROL VALVE, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.as
3
4
90.160.as
5
1
6
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87736310

COVER ASSY

1шт.

2

82036856

MOLDING,355mm L

L=355

1шт.

2

82869674

MOLDING,88.5mm L

L=88.5

1шт.

3

87756126

BAR

1шт.

4

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

5

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.
