Запчасти Case IH PUMA1854 (90.100.AU[01]) - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

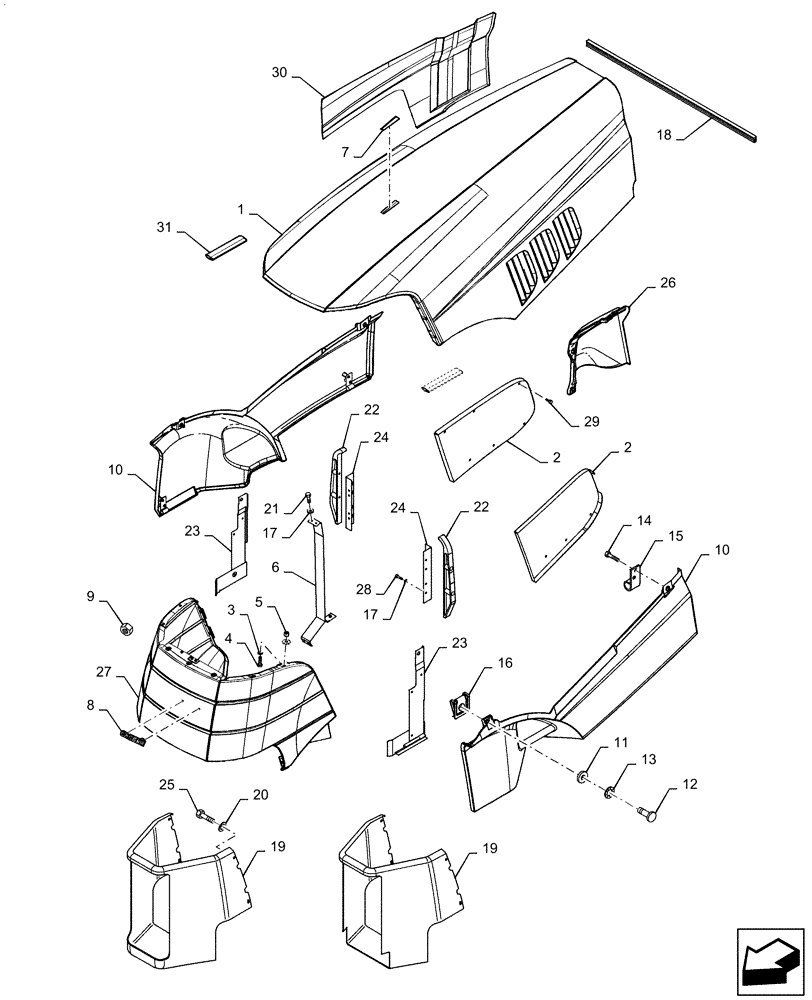

Схема запчастей Case IH PUMA1854 - (90.100.AU[01]) - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
27
1
5
4
13
22
11
16
2
23
10
19
3
17
2
24
28
10
22
14
9
31
17
26
12
21
30
18
15
8
29
25
6
19
24
23
7
20

Артикул

Название

Примечание

Количество

1

47658897

ENGINE HOOD

Panel Assy - Upper

1шт.

2

87631968

SIEVE

Grille Hood Panel - RH

1шт.

2

87631969

ENGINE HOOD PANEL

Grille - LH

1шт.

3

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

11шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

5

12574211

NUT,M6 x 1, Cl 8

8шт.

6

84582950

SUPPORT

Assy Radiator Grill

1шт.

7

44995044

GUIDE

Trim - Hood Sight

1шт.

8

87716230

EMBLEM

Case

1шт.

9

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

10

84333938

SIDE PANEL

Assy Hood Lower LH

1шт.

10

84333939

SIDE PANEL

Assy Hood Lower RH

1шт.

11

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

12

87585593

FASTENER,9mm ID x 18mm OD

Stud Hood Panel Retention

2шт.

13

87313183

RETAINER

Hood Panel Retention

2шт.

14

15517201

SCREW

4шт.

15

87325876

BRACKET

Hood Panel

2шт.

16

87313182

CLIP

Hood Panel Retention

4шт.

17

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

11шт.

18

87638347

RUBBER STRIP

Seal Hood Panel

1шт.

19

87494626

PANEL

Radiator Grille

1шт.

20

81872184

WASHER,6.4mm ID x 17mm OD

5шт.

21

120100

BOLT,M6 x 20mm, Cl 8.8

11шт.

22

87661307

GUIDE

Hood Panel

2шт.

23

87700613

BRACKET

Assy Hood Panel - LH

1шт.

23

87700608

BRACKET

Assy Hood Panel - RH

1шт.

24

87674163

HOLDER

Plate Hood Closing

2шт.

25

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

5шт.

26

84276244

ENGINE HOOD PANEL

Assy Lower RH

1шт.

27

87641708

GRILLE

Assy Radiator - Upper

1шт.

28

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

8шт.

29

15516201

SCREW,Hex, M4 x 2.5 x 12mm

12шт.

30

47624429

INSULATOR

Heat Protection

1шт.

31

87624534

SEAL

Hood Side

2шт.

Выбрано товаров: 34
