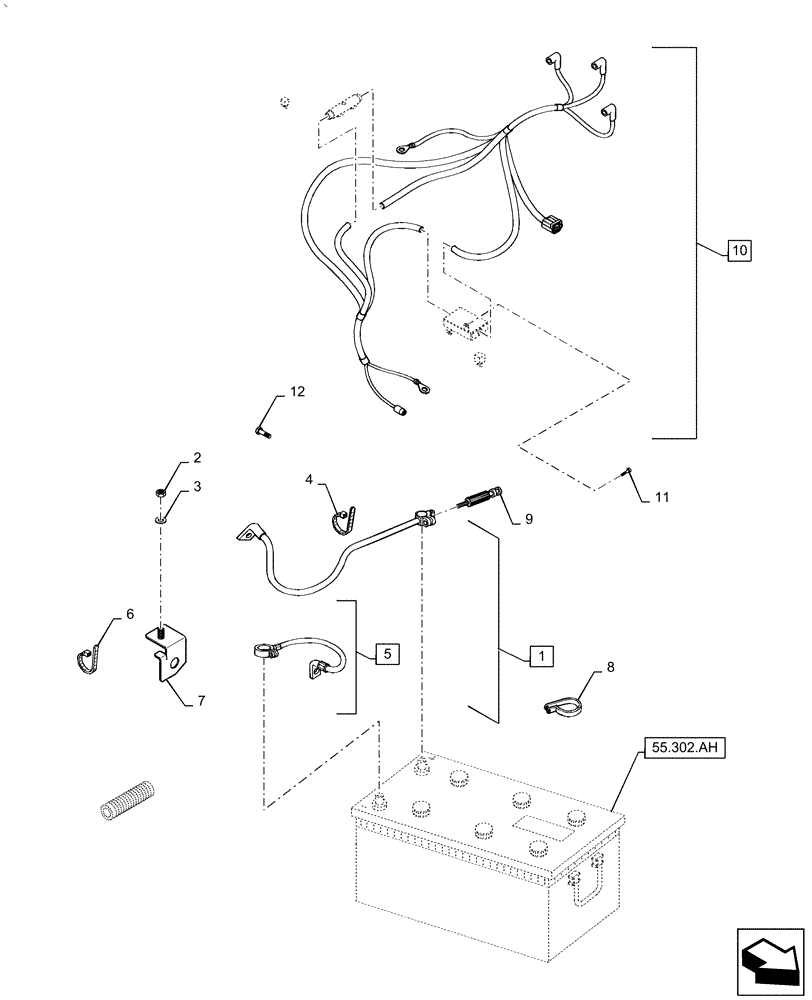

Запчасти Case IH PUMA1854 (55.302.AV) - BATTERY - CABLES (55) - ELECTRICAL SYSTEMS

1

87324238

POS BATTERY CABLE,1290mm L

To Starter Motor, Incl 2 - 4

1шт.

2

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

4

82001040

CABLE TIE,.19" x 11.5"

1шт.

5

87391337

NEG BATTERY CABLE

Incl 6, 7

1шт.

6

83933061

STRAP

3шт.

7

87395437

BRACKET

1шт.

8

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

9

82028966

TERMINAL CONNECTOR,M10 x 1.5, CL 8.8

1шт.

10

84245746

WIRE HARNESS

1шт.

11

13272117

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

12

86585707

SCREW,Phillips Drive, Pan HD, M4 x 35mm, Cl 4.8

2шт.
