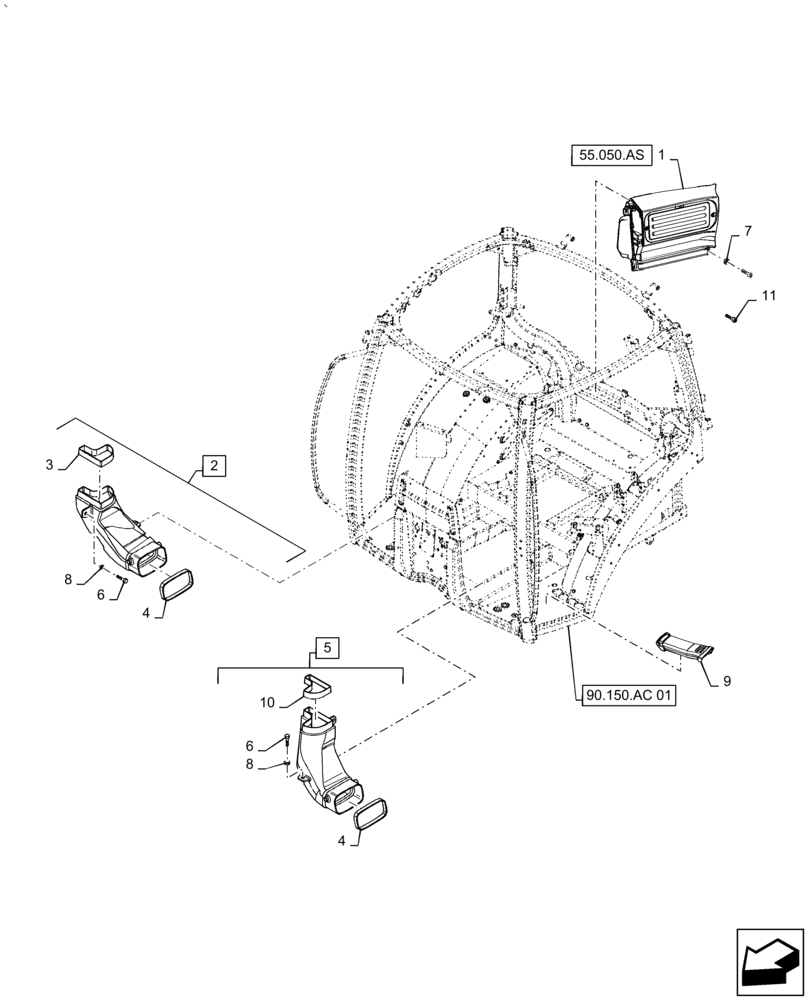

Запчасти Case IH PUMA1854 (50.104.AO[01]) - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (50) - CAB CLIMATE CONTROL

1

87651396

BLOWER,12V

Assy

1шт.

2

87518106

DUCT

RH, Incl 3, 4, 8, 6

1шт.

3

87523583

SEAL

1шт.

4

87523573

SEAL

Rubber

1шт.

5

87390278

DUCT

LH, Incl 10, 4, 6, 8

1шт.

6

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

RH

2шт.

6

87578958

SELF-TAP SCREW,M6.3 x 1.8 x 25mm

2шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

9

87301550

DUCT

LH

1шт.

9

87301551

DUCT

RH

1шт.

10

87523726

SEAL

Rear Hood Duct

1шт.

11

13276617

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 5.8, Full Thd

2шт.
