(44.520.AB[01]) - 4WD DRIVING WHEELS

Запчасти Case IH PUMA1854 (44.520.AB[01]) - 4WD DRIVING WHEELS (44) - WHEELS

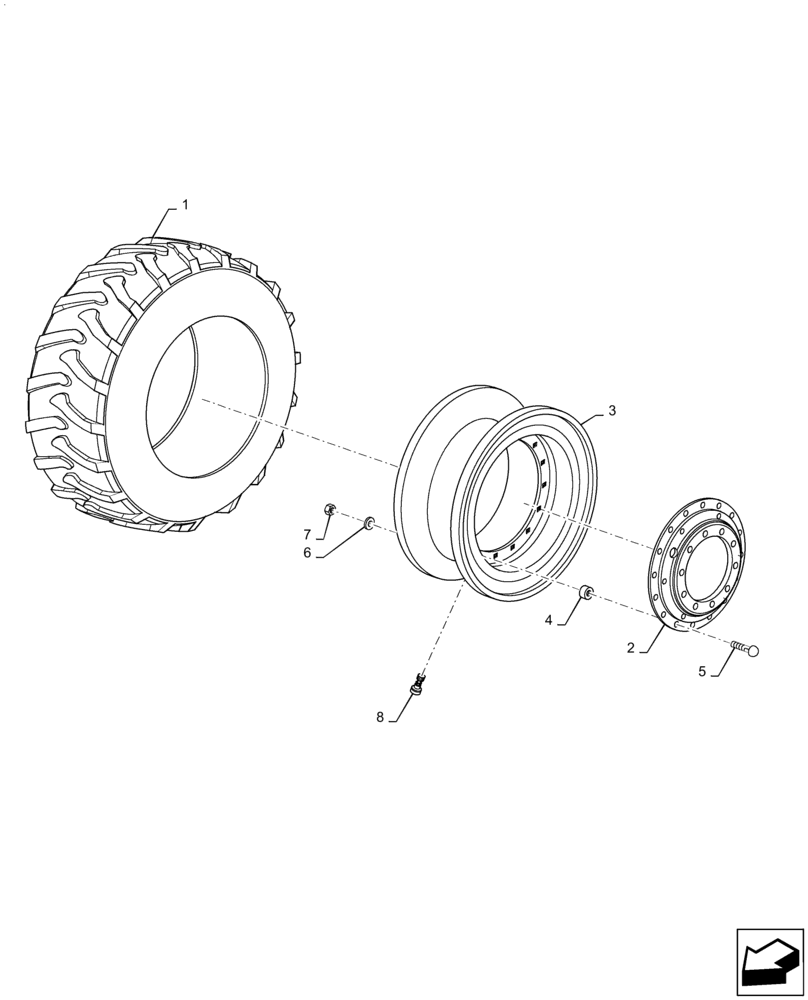

Схема запчастей Case IH PUMA1854 - (44.520.AB[01]) - 4WD DRIVING WHEELS (44) - WHEELS
5
6
2
4
8
7
8
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47684620

TYRE/TIRE

4шт.

2

82031205

WHEEL DISC,807.5mm Dia, 16 Bolts, CASE Silver

1шт.

3

47726827

RIM,TW18LX42, 16 Bolts, CASE Silver

With Flange

1шт.

4

82031090

SPACER,16.5mm ID x 31mm OD x 15mm L

16шт.

5

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

Wheel

16шт.

6

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

16шт.

7

12164124

NUT,M16 x 1.5, Cl 8

16шт.

8

47684644

For Tubeless

VALVE STEM

4шт.
